Telemecanique XSA-V11373 XSAV11373 Inductive Rotation Sensor M30 10mm 6–150 Pulses/min 12–48VDC PNP NC

The Telemecanique XSA-V11373 is a cylindrical inductive proximity sensor from the XSA series, specifically engineered for rotation monitoring applications. Unlike a conventional proximity sensor used simply for object detection, this model incorporates frequency-based rotation monitoring and is intended to detect the passage of metallic targets on rotating shafts, wheels, gears or other moving machine components. Its specified operating range is 6–150 impulses/minute, making it particularly suitable for low-speed rotation monitoring.

The sensor has a 10 mm nominal sensing distance and can be flush-mounted in metal. It uses a PNP, normally closed, 3-wire DC output, operates from 12–48 V DC, and can switch loads up to 200 mA with overload and short-circuit protection. The device also includes a built-in start-up delay of approximately 9 seconds ±20% + 1/Fr, allowing rotating machinery to reach operating speed before the monitoring function becomes active.

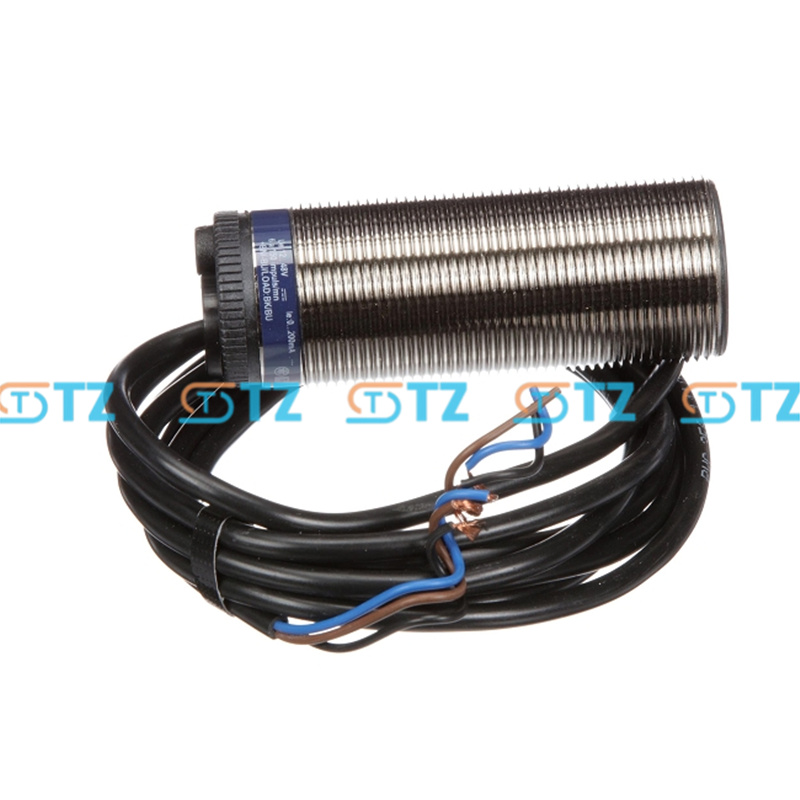

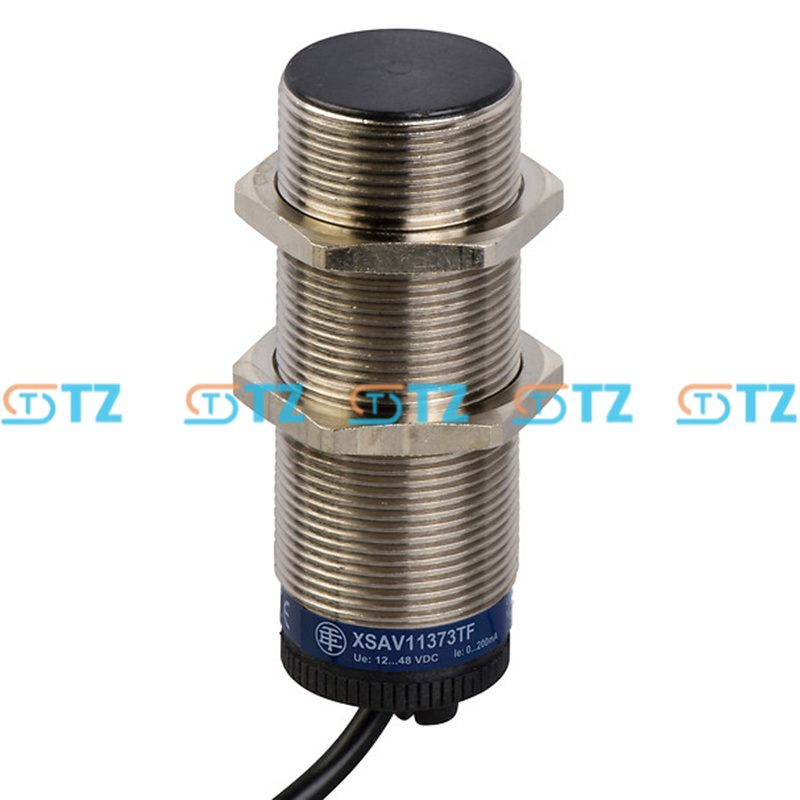

The XSA-V11373 has an M30 × 1.5 threaded cylindrical body, approximately 81 mm overall length, a 2 m pre-cabled connection, and IP67 environmental protection. It is designed for industrial machinery where reliable monitoring of shaft rotation, conveyor movement, fan rotation or other mechanical motion is required.

Main Features

• Inductive rotation monitoring sensor
• Telemecanique XSA / XSAV series
• 10 mm nominal sensing distance
• 6–150 pulses/minute rotation monitoring range
• 3-wire PNP output
• Normally closed (NC)
• 12–48 V DC supply
• M30 × 1.5 cylindrical metal housing
• Flush-mountable in metal
• 2 m pre-cabled connection
• IP67 protection
• Red LED output-state indication
• Overload and short-circuit protection
• Built-in start-up/run-up delay
• Suitable for low-speed rotation monitoring

Application Scope

• Machine rotation monitoring
• Shaft rotation detection
• Conveyor movement monitoring
• Fan and blower rotation monitoring
• Gear and wheel speed monitoring
• Pump rotation monitoring
• Motor-driven equipment
• Underspeed / no-rotation detection
• Material handling equipment
• Industrial machinery protection

The key application is rotation monitoring rather than ordinary presence detection.
