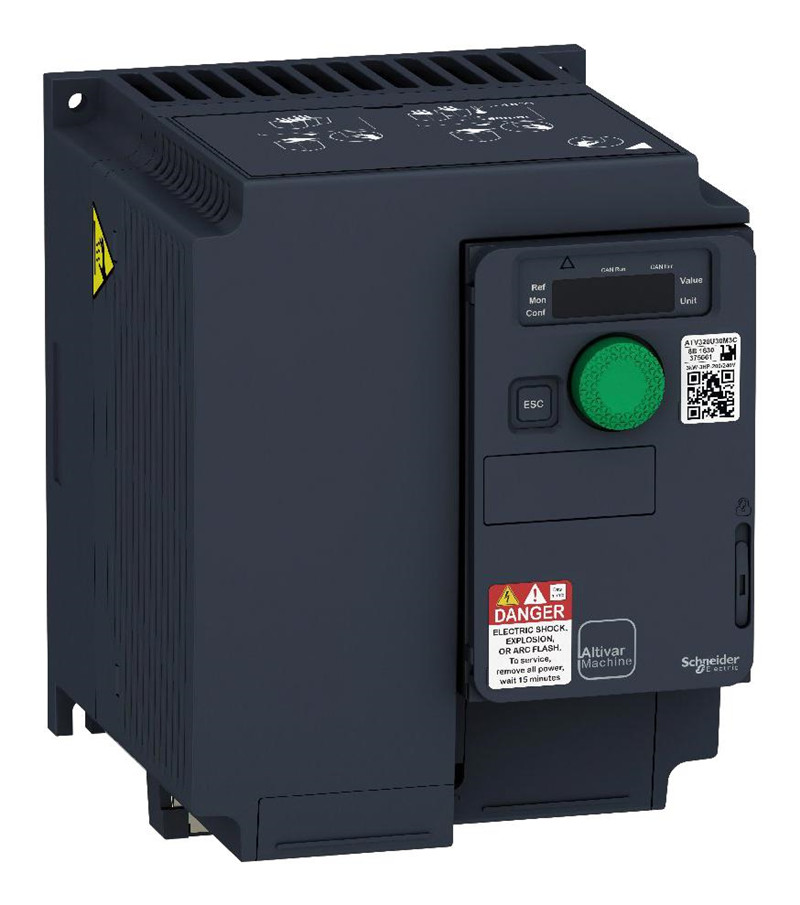

Schneider Electric Altivar Machine ATV320 Variable Frequency Drive VFD

📝 PRODUCT INTRODUCTION

The Schneider Electric Altivar Machine ATV320 is a premium variable speed drive designed for OEMs and machine builders requiring advanced performance and high connectivity. Developed for heavy-duty industrial applications, the ATV320 offers enhanced control capabilities for both synchronous and asynchronous motors. It features a highly robust design capable of withstanding harsh environmental conditions, including high ambient temperatures and corrosive atmospheres. With comprehensive embedded functional safety and support for standard industrial networks, it is optimized for packaging, material handling, textile, and mechanical actuators.

⚙️ TECHNICAL PARAMETERS

Main Input Voltage: 1-phase 200V to 240V AC, 3-phase 200V to 240V AC, or 3-phase 380V to 500V AC

Power Range: 0.18 kW to 15 kW (0.25 HP to 20 HP)

Output Frequency Range: 0.1 Hz to 599 Hz

Motor Control Profiles: Open-loop sensorless vector control, standard V/F control (2 points / 5 points), flux vector control without sensor for PM motors, and energy saving ratio

Overload Capacity: 150 percent for 60 seconds or 170 percent for 2 seconds based on drive rating

Embedded Communications: Modbus RTU and CANopen standard

Optional Networks: EtherNet/IP, Modbus TCP, PROFINET, Profibus DP, EtherCAT, and DeviceNet via communication cards

Functional Safety: 5 embedded safety functions including Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Brake Control (SBC), and Safe Max Speed (SMS)

Form Factors: Available in Book Form Factor (narrow width for side-by-side mounting) and Compact Form Factor (minimized footprint for shallow panels)

💡 KEY FUNCTIONS

Advanced Connectivity: Integrates seamlessly into diverse automation architectures via a wide variety of optional fieldbus communication modules.

Enhanced Machinery Safety: Built-in functional safety features comply with SIL3 / PL e standards, eliminating the need for expensive external safety components.

Robust Environmental Resistance: Circuit boards are coated in accordance with IEC 60721-3-3 class 3C3 and 3S2 to ensure high reliability in humid, dusty, or chemically aggressive locations.

High Torque Output: Delivers strong dynamic performance with high breaking capacity and continuous torque capability at low speed ranges.

Flexible Design Formats: Two distinct physical styles (Book and Compact) allow panel builders to optimize enclosure layout space and thermal management.

📐 DIMENSIONS

Compact Format Frame 1 (0.18kW to 0.75kW 400V): Height 143 mm x Width 72 mm x Depth 138 mm

Compact Format Frame 2 (1.5kW to 4.0kW 400V): Height 184 mm x Width 105 mm x Depth 158 mm

Book Format Frame 1 (0.37kW to 1.5kW 400V): Height 270 mm x Width 45 mm x Depth 245 mm

Book Format Frame 2 (2.2kW to 4.0kW 400V): Height 325 mm x Width 60 mm x Depth 245 mm

Book Format Frame 3 (5.5kW to 7.5kW 400V): Height 400 mm x Width 150 mm x Depth 245 mm

Book Format Frame 4 (11kW to 15kW 400V): Height 400 mm x Width 180 mm x Depth 245 mm

⚖️ WEIGHT

Compact Format Frame 1: 1.1 kg (2.4 lbs)

Compact Format Frame 2: 2.1 kg (4.6 lbs)

Book Format Frame 1: 2.4 kg (5.3 lbs)

Book Format Frame 2: 2.9 kg (6.4 lbs)

Book Format Frame 3: 4.4 kg (9.7 lbs)

Book Format Frame 4: 6.8 kg (15.0 lbs)
