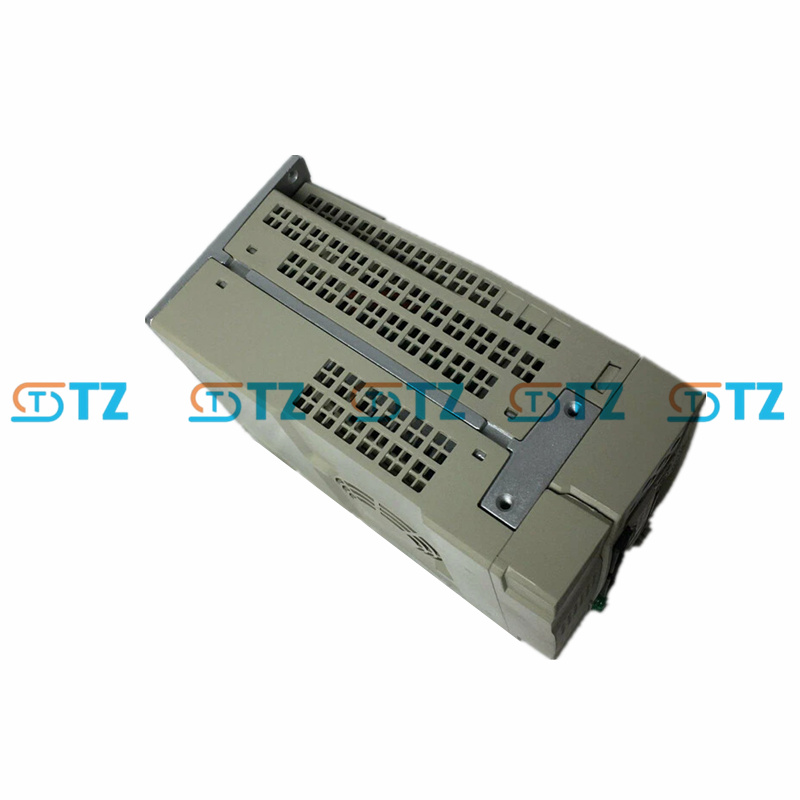

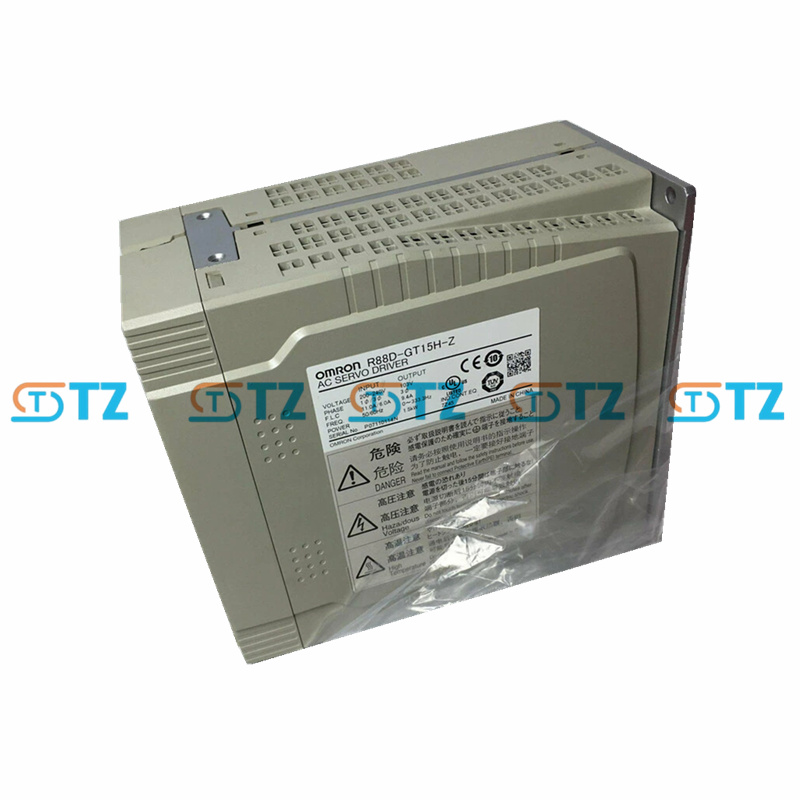

OMRON R88D-GT15H AC SERVO DRIVER G SERIES

Product parameters

Model: R88D-GT15H

Rated power: 1.5kW

Power supply voltage: Single-phase/three-phase 200-240 VAC, 50/60 Hz

Rated input current: Single-phase: 10.0A

Three-phase: 6.7A

Continuous output current (rms): 9.8A

Instantaneous maximum output current (rms): 21.0 A

Control mode: Pulse train input or analog input

Protection grade: IP10

Standard compliance: EN55011 Class A, EN61000-6-2, IEC61000-4-2/-3/-4/-5/-6/-11, EN50178, UL 508C, CSA C22.2 No.14

Environmental conditions: Operating temperature: 0 to 55°C

Storage temperature: -20 to 65°C

Humidity: 20% to 90% (No condensation)

Service life: Approximately 28,000 hours under an average ambient temperature of 55°C and 100% rated torque

Function

Multiple control modes: Supports position control, speed control and torque control, adapting to various application requirements.

High-precision control: In combination with incremental or absolute encoders, it provides fast and precise positioning control (with a high response frequency of 1 kHz).

Protection function: Control power supply under-voltage protection

Overvoltage protection

Overload protection

Overheat protection

Encoder error detection

Flexible input interface: Supports pulse train input (position control) and analog input (speed/torque control).

Online automatic tuning: Supports online automatic tuning and vibration suppression, simplifying setup and optimizing performance.

Compact design: Miniaturized structure saves up to 30% of control cabinet space, reducing the risk of wiring and connection errors.

Compatibility: Seamlessly compatible with R88M-G series servo motors, supporting configurations such as straight shaft, key straight shaft, and brake.

MECHATROLINK-II support: Offers MECHATROLINK-II communication options to reduce wiring time and enhance control efficiency.

Application scenarios

Industrial automation: Used in packaging machines, labeling machines, medium-sized conveyor belts, etc., it requires precise position and speed control.

Robot technology: Motion control suitable for medium-sized robot arms or automated assembly lines.

CNC machine tools: Used for small and medium-sized CNC equipment, providing high-precision processing control.

Textile equipment: Used for feeding and winding control in textile machinery.

Electronic manufacturing: Suitable for precise positioning of semiconductor manufacturing equipment or electronic components.

Other medium-sized equipment: Suitable for scenarios that require high-performance servo drives, such as printing presses or automated production lines.
