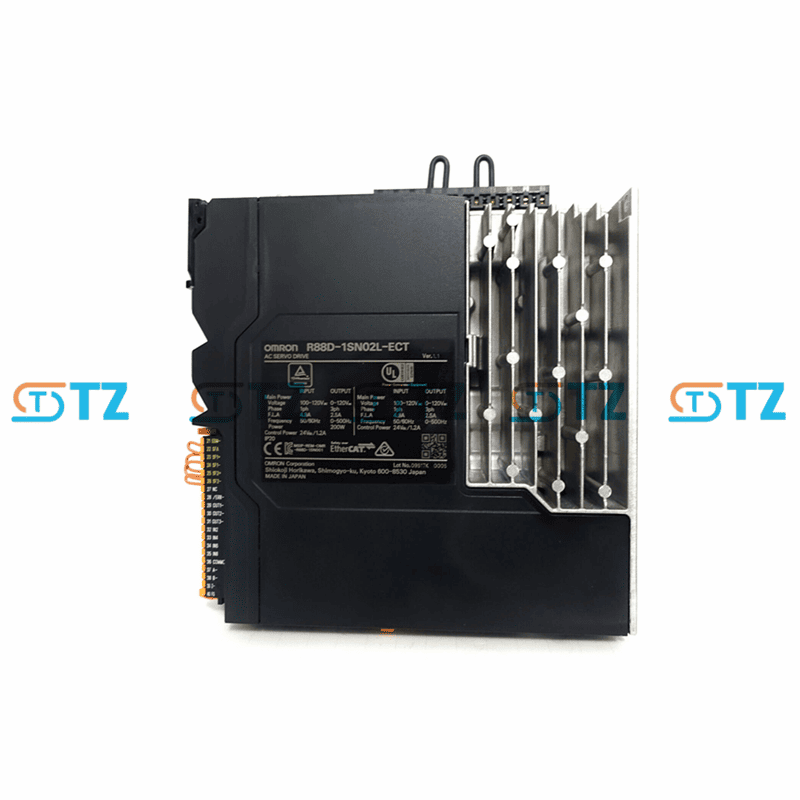

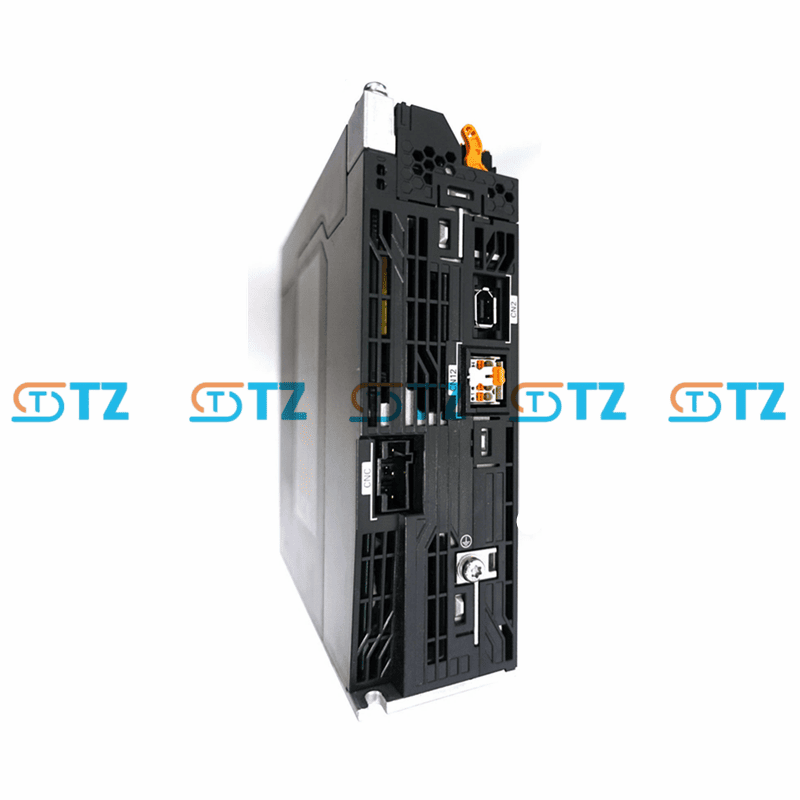

OMRON R88D-1SN02L-ECT AC SERVO DRIVE 1S SERIES

Product parameters

Model: R88D-1SN02L-ECT

Type: AC Servo Drive

Rated power: 200W

Power supply voltage: Single-phase 85-132 VAC, 50/60 Hz

Control voltage: 24 VDC

Communication protocol: EtherCAT (Supports real-time multi-axis synchronization, control cycle 125 microseconds)

Encoder support: 23-bit high-resolution absolute encoder (16-bit multi-turn, 65,536 turns, no battery backup required)

Safety function:

STO (Safe Torque Off) through the safe input signal: EN ISO 13849-1 (Cat3 PLe), EN 61508 (SIL3), EN 62061 (SIL3), EN 61800-5-2 (STO)

STO through EtherCAT (FSoE) : EN ISO 13849-1 (Cat3 PLd), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)

Control methods: Position control, speed control, torque control

Protection grade: IP20

Ambient temperature: 0-55°C (When installed side by side, 0-45°C, with a spacing of less than 10 mm)

ECCN classification: EAR99

Installation method: DIN rail mounting or panel mounting

Spacing requirements: When installed side by side, the spacing between drivers with a power of 3 kW or less should be less than 10 mm, and the ambient temperature should be limited to 0-45°C. The spacing of drivers with a power of 4 kW or more should be ≥40 mm

Function

High-precision control: Supports 23-bit high-resolution absolute encoders (no battery backup required), achieving sub-micron positioning accuracy (repeatability accuracy <±0.01mm).

Fast response: EtherCAT communication offers a control cycle of 125 microseconds and supports multi-axis real-time synchronization, making it suitable for high-dynamic applications.

Security function: Built-in STO (Safe Torque Off), supports Fail Safe over EtherCAT (FSoE), simplifies the installation of security devices, and complies with multiple international security standards.

Optimization and debugging: Integrated with Sysmac Studio, it provides fault diagnosis functions, supports rapid setup and maintenance, and reduces downtime.

Battery-free encoder: Absolute multi-turn encoder (16-bit, 65,536 turns) requires no battery maintenance, eliminates the need for resetting operations, and increases the machine's operating time.

Compact design: Miniaturized design, easy to install in control cabinets with limited space, supports DIN rail mounting.

Application scenarios

Precision processing: such as small CNC machine tools, laser cutting machines, and 3D printers, which require sub-micron positioning accuracy.

Robotics technology: Used for small robot arms or collaborative robots, providing high-precision motion control.

Packaging equipment: such as pharmaceutical blister packaging machines and food labeling systems, suitable for intermittent high-speed tasks.

Material handling: Small conveyor belts or sorting systems, using EtherCAT to achieve multi-axis synchronization.

Electronic manufacturing: such as surface mount technology (SMT) machines and semiconductor testing equipment, requires compact design and high-precision control.
