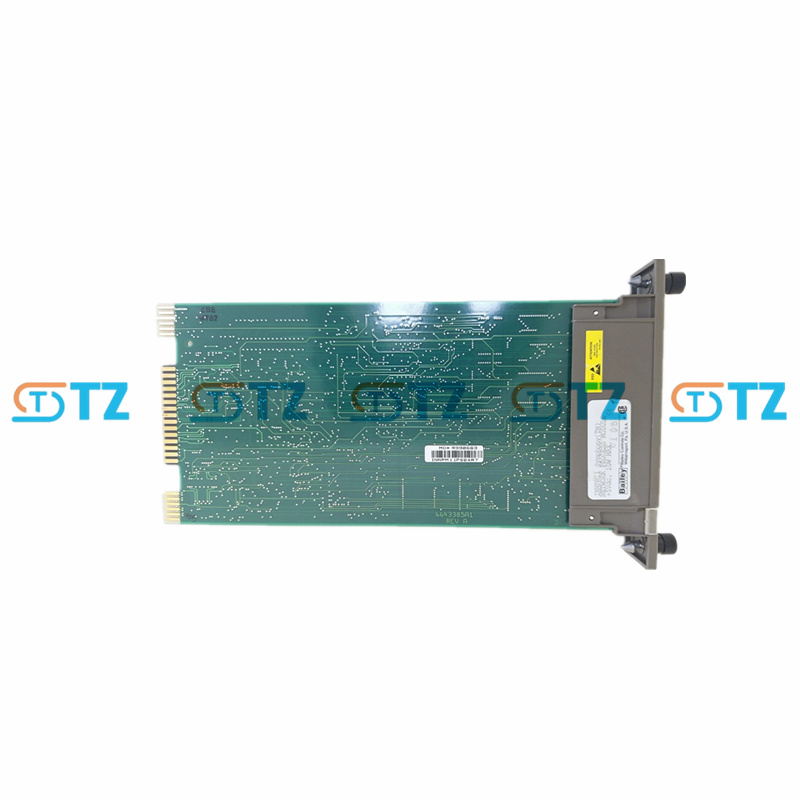

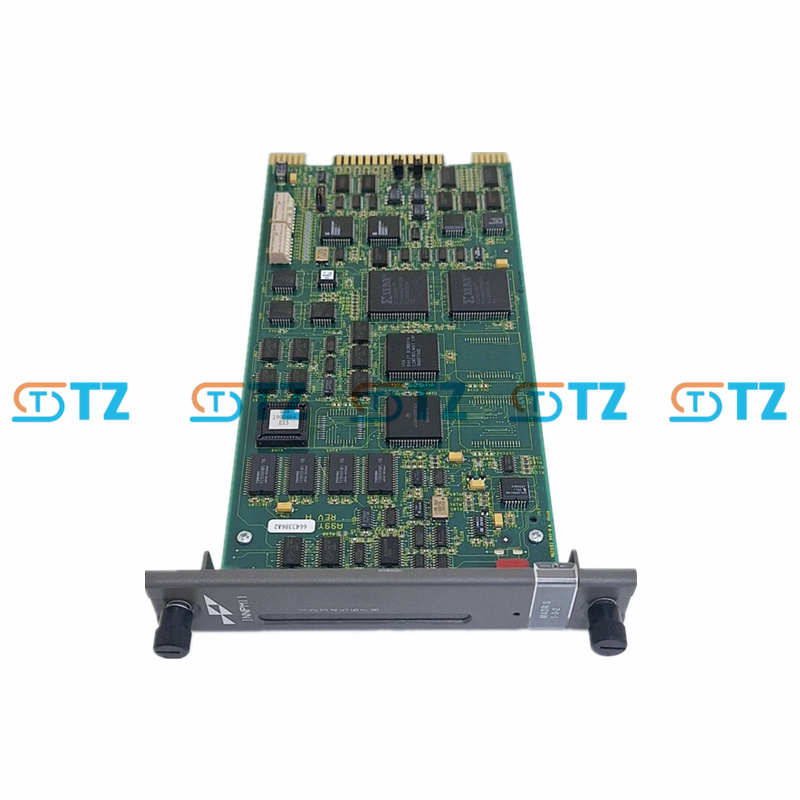

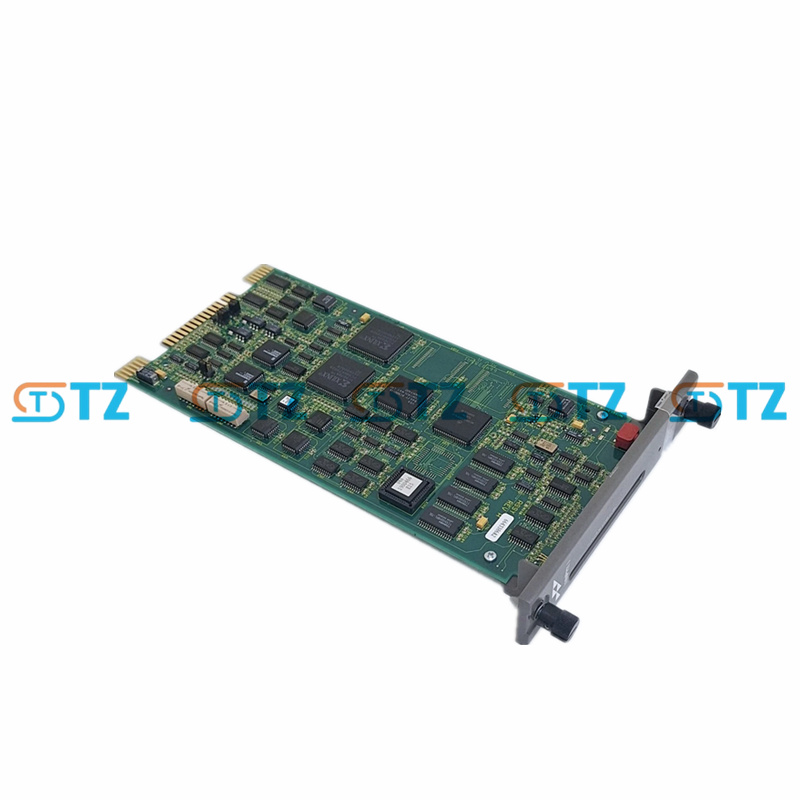

INNPM11 ABB NETWORK PROCESSOR MODULE

Product parameters

Manufacturer: ABB Bailey

Model: INNPM11

Processor: Built-in microprocessor, supporting INFI-NET system operation

Memory: Equipped with ROM (Read-Only Memory) and SRAM (Static Random Access Memory)

Communication interface: INFI-NET network interface, used for communication between modules

Jumper (J1-J5) : Used for configuring module functions

DIP switch (SW4) : Configured with ROM verification, failover, redundancy expectation and diagnostic enableness

Redundancy support: Supports primary and backup redundancy, and fault switching is based on power status

Diagnostic function: Supports INFI-NET diagnosis, ROM checksum, and machine fault timer (which can be disabled via jumper)

Power compatibility: Compatible with the INFI 90 system standard power supply

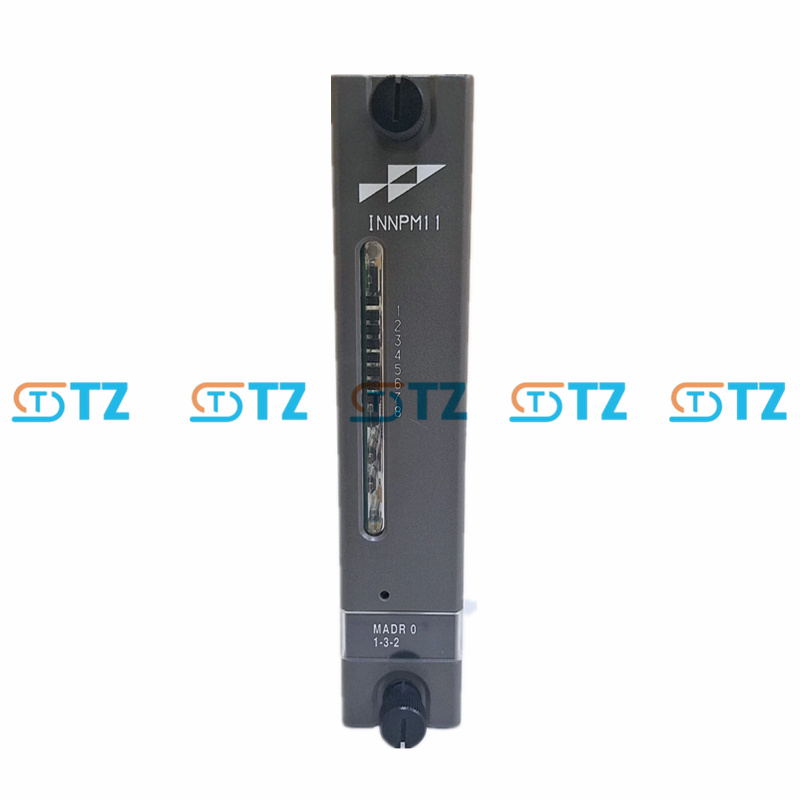

Others: LED status indication (execution mode, no power), supports firmware diagnosis and status reporting

Size module form: Single-sided printed circuit board (PCB)

Function

Network communication: Manage INFI-NET networks, handle data routing and protocol conversion between modules

Redundancy management: Supports primary and backup switching, and redundancy policies can be configured through DIP switches and jumpers

Diagnosis and Monitoring: Provides ROM verification, INFI-NET diagnosis, LED status indication and fault timer

Configuration flexibility: Customize module Settings through J1-J5 jumpers and SW4 switches

Data processing: Supports process control, alarm triggering and log recording

System integration: Compatible with Net 90 and Symphony Harmony, easy to expand

Application scenarios

Industrial automation: DCS systems used in industries such as petrochemicals, power, and pharmaceuticals to achieve real-time control and data communication

High-reliability scenarios: In critical facilities such as power plants and chemical plants, system continuity is ensured through redundant configuration

System Upgrade: Supports migration from INFI 90 to Symphony Plus or 800xA systems, suitable for network expansion and diagnostics

Process monitoring: It is used for communication between modules, alarm management and trend analysis, and is suitable for medium and large-scale industrial projects.
