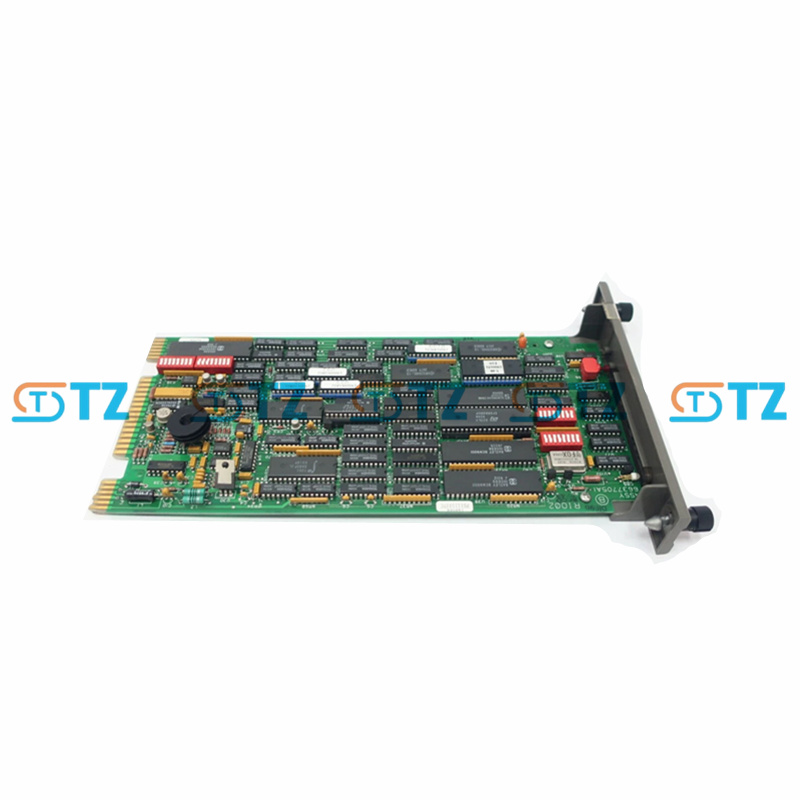

IMRIO02 ABB REMOTE INPUT/OUTPUT MODULE

Product parameters

Manufacturer :ABB

Model :IMRIO02

Input/output channels: Supports multi-channel analog input/output (AI/AO) and digital input/output (DI/DO), with the specific number depending on the configuration (commonly 8-channel AI/AO and 16-channel DI/DO).

Input type

Analog input: 4-20 mA, 0-10 V DC; Digital input: 24 V DC (nominal value)

Output type

Analog output: 4-20 mA Digital output: Relay or 24V DC

Communication interface :Bailey Infi 90 proprietary communication protocol (such as INFI-Net or Plant Loop)

Power supply: 24V DC (Nominal value, range 20-30V DC, depending on system configuration)

Power consumption: Approximately 5-10 W (depending on the load)

Operating temperature :0°C to +60°C (+32°F to +140°F)

Storage temperature :-40°C to +85°C (-40°F to +185°F)

Humidity :5% to 95% non-condensing

Protection grade :IP20 (Indoor industrial environment)

Installation method: DIN rail or rack mounting (compatible with Infi 90 system cabinet)

Compatibility: Bailey Infi 90 system (Net 90, Symphony Plus); Supports integration with modules such as IMMFP and IMCIS

Certifications: CE, UL, CSA

Function

Remote signal acquisition: Supports multiple analog and digital input signals (such as 4-20mA current loop, 24V DC switch quantity), used for collecting sensor and switch signals.

Signal processing and Output: It provides signal conditioning and conversion functions, supports 4-20mA analog output and digital relay output, and is used to control actuators or external devices.

Communication integration: Communicate with the Infi 90 main controller via INFI-NET or Plant Loop protocol to achieve high-speed transmission and real-time control of remote I/O data.

Diagnostic function: Supports module status monitoring and fault diagnosis. The power supply, communication and channel status are displayed through LED indicator lights, facilitating on-site maintenance.

Modular design: Supports hot plugging and flexible configuration, seamlessly integrates with other modules of the Infi 90 system, facilitating system expansion.

Application scenarios

Power industry: It is used for monitoring boilers, turbines and generators in power plants, collecting temperature, pressure and switch signals to ensure the safe operation of equipment.

Petrochemical industry: In oil refineries and chemical plants, monitor the operating status of pumps, valves and compressors to support process control and fault diagnosis.

Industrial automation: In manufacturing and material handling systems, sensor signals (such as limit switches and flowmeters) are collected to achieve automated sequential control.

Distributed control system: As a remote I/O node, integrated with Infi 90 DCS, it is suitable for distributed signal acquisition and control in large factories, enhancing system reliability.
