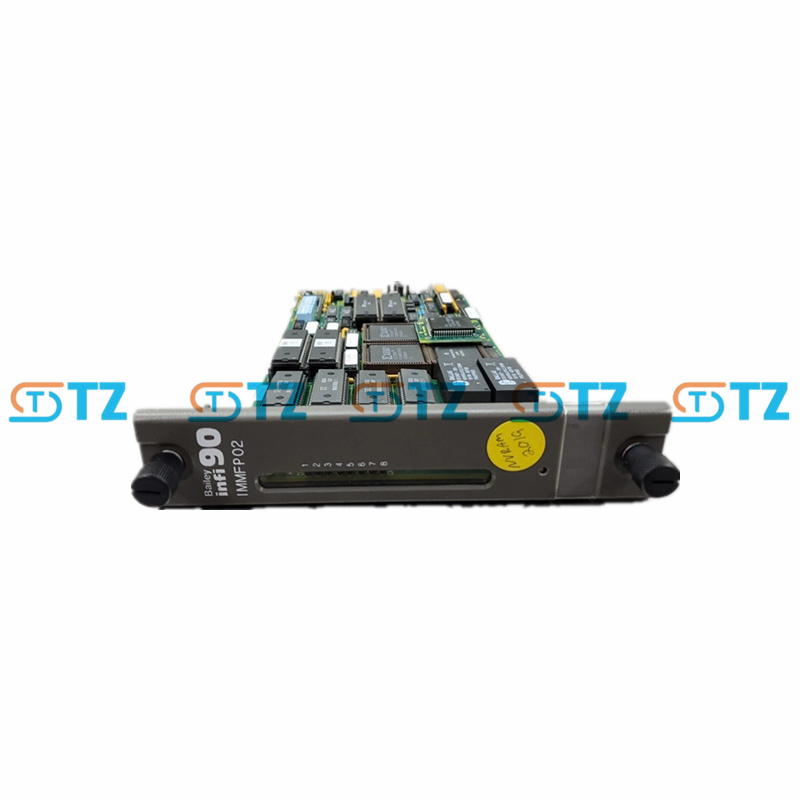

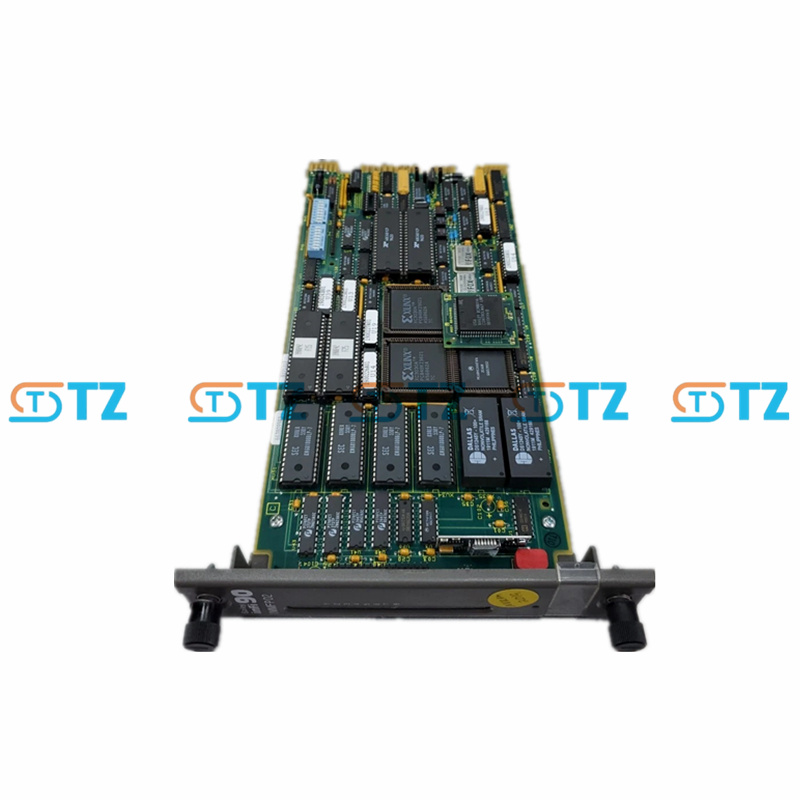

IMMFP02 ABB MULTI-FUNCTION PROCESSOR INTERFACE MODULE

Product parameters

Manufacturer :ABB (Bailey Infi 90 Series)

Model :IMMFP02

Microprocessor: 16-bit, 12 MHz (similar to IMMFP03, with slightly lower performance than IMMFP12)

Memory :256 kB ROM, 256 kB RAM, 128 kB NVRAM

Power supply :+ 5V DC, maximum 1.5A (maximum power consumption 7.5W)

Operating temperature :0°C to +70°C (+32°F to +158°F)

Storage temperature :-40°C to +85°C (-40°F to +185°F)

Humidity :5% to 95% non-condensing

Protection grade :IP20 (Indoor industrial environment)

Installation location: One slot of the Infi 90 OPEN module installation unit

Compatibility :Infi 90 system (Net 90, Symphony Plus); Support integration of analog/digital I/O modules (such as IMQRS22, IMCIS22)

Communication protocol :INFI-NET or Plant Loop protocol

Certifications :CE, UL, CSA

Function

Process control: Supports multi-loop analog control, sequential control, batch processing and basic algorithms (such as PID, logic control), suitable for small and medium-sized complex control tasks.

Data processing and communication: Handle data acquisition and point-to-point communication, and achieve high-speed data exchange between modules through INFI-NET or Plant Loop protocols.

Redundancy support: Supports hot backup (hot standby) mode. When the main module fails, it can switch to the backup module without disturbance to ensure system continuity.

Configuration and Diagnosis: Edit control algorithms through Infi 90 configuration software (such as Bailey Composer); When a fault occurs, the LED displays an error code, supporting on-site diagnosis and maintenance.

I/O integration: Compatible with the analog/digital I/O modules of the Infi 90 system, it offers flexible input/output processing and supports modular expansion.

Application scenarios

Power industry: It is used for boiler and turbine control in power plants, performing multi-loop simulation and sequential control to ensure stable operation.

Petrochemical industry: In oil refineries and chemical plants, it supports batch processing and basic control strategies, and is suitable for data acquisition and process monitoring.

Industrial automation: As an independent controller in manufacturing and process systems, it handles small and medium-sized control tasks and enhances system efficiency.

Distributed control system: As the core node of Infi 90 DCS, it is suitable for integrated control in small and medium-sized factories and supports system expansion and reliability.
