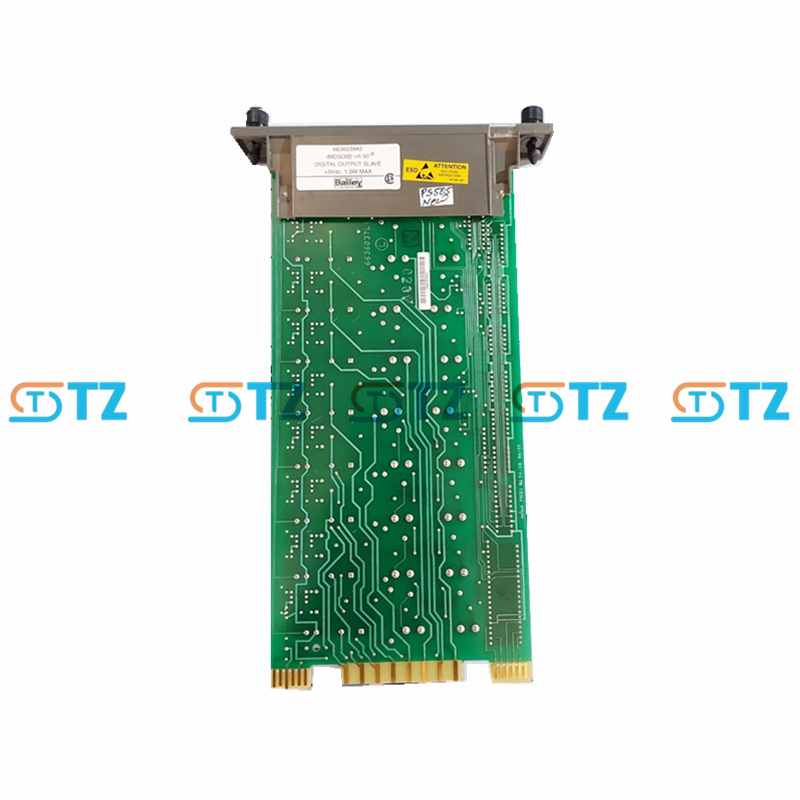

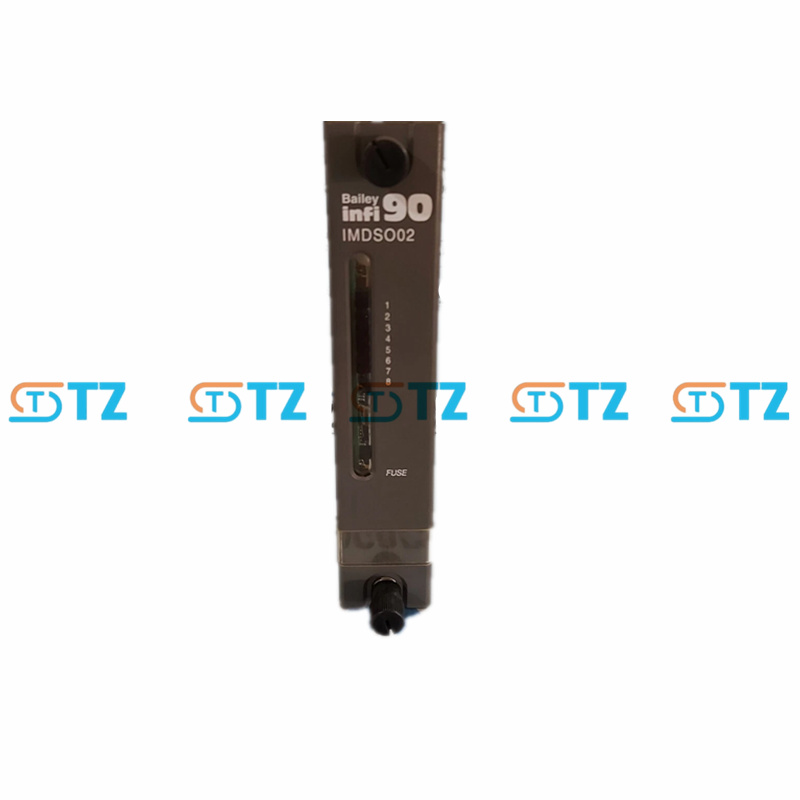

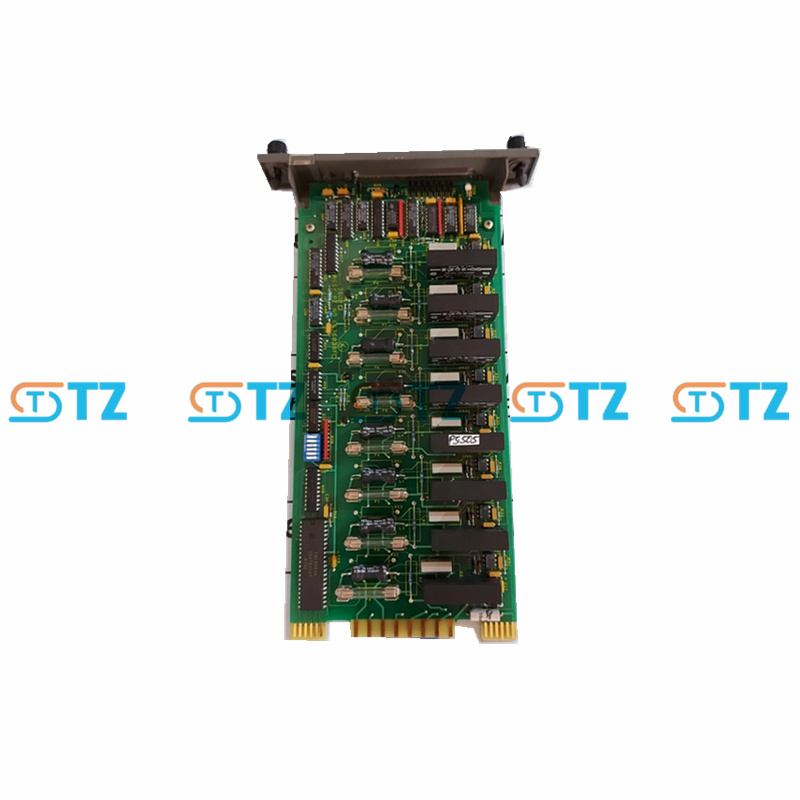

ABB IMDSO02 is a Digital Output Module of the ABB Bailey series, specifically designed for industrial automation and distributed control systems (DCS).
HS CODE : 8538909200
Product No :
IMDSO02 ABBManufacture :
ABBSize (cm) :
33*17.8*5.1Weight (kg) :
0.3Origin :
SwedenWarranty :
12 MonthLead Time :
Ready StockDescription :
DIGITAL SLAVE OUTPUT MODULEProduct parameters
Output channel number :16 channels
Output type: Isolated Collector output (Open Collector)
Maximum output current: 370 mA per channel
Nominal power supply voltage :24 VDC
Response time: High-speed output
Compatibility :ABB Bailey INFI 90 system and Symphony Harmony series
Certification :NEMA 4X (IP66), Class I Div 2 Grp A, B, C, D T4
Function
Multi-channel output: 16 independent isolated channels, simultaneously controlling multiple field devices such as actuators and relays.
High-speed signal control: Supports real-time digital output, suitable for dynamic process response.
Isolation protection: Electrical isolation between channels to prevent noise and fault transmission and enhance system safety.
Fault diagnosis: Built-in diagnostic function, supporting module status monitoring and error alerts.
Integrated communication: Seamless connection with ABB DCS systems, supporting standard industrial protocols such as Modbus.
Environmental adaptability: NEMA 4X protection grade, dust-resistant and water-proof, suitable for harsh industrial environments.
Application scenarios
Process automation: Digital signal control in the chemical and oil and gas industries, such as valve and pump drives.
Power plant: Equipment switching and load control in the Symphony Harmony system.
Industrial DCS system: Expansion module of Bailey INFI 90 platform for field device interfaces.
Mechanical control: Actuator and sensor feedback control in manufacturing.
On-site monitoring: Remote digital output applications for oil and gas and water treatment plants.
