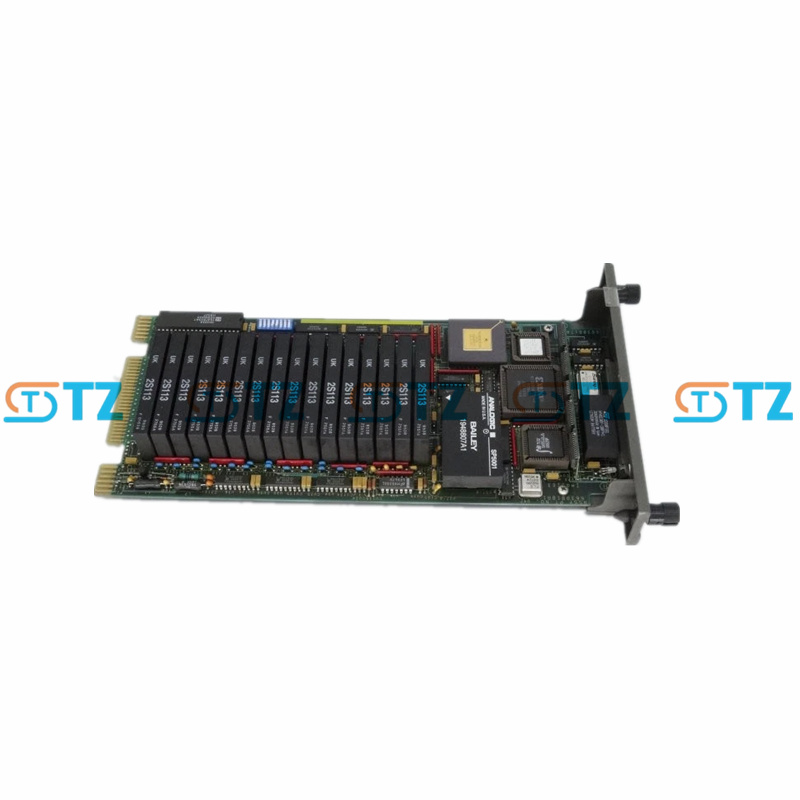

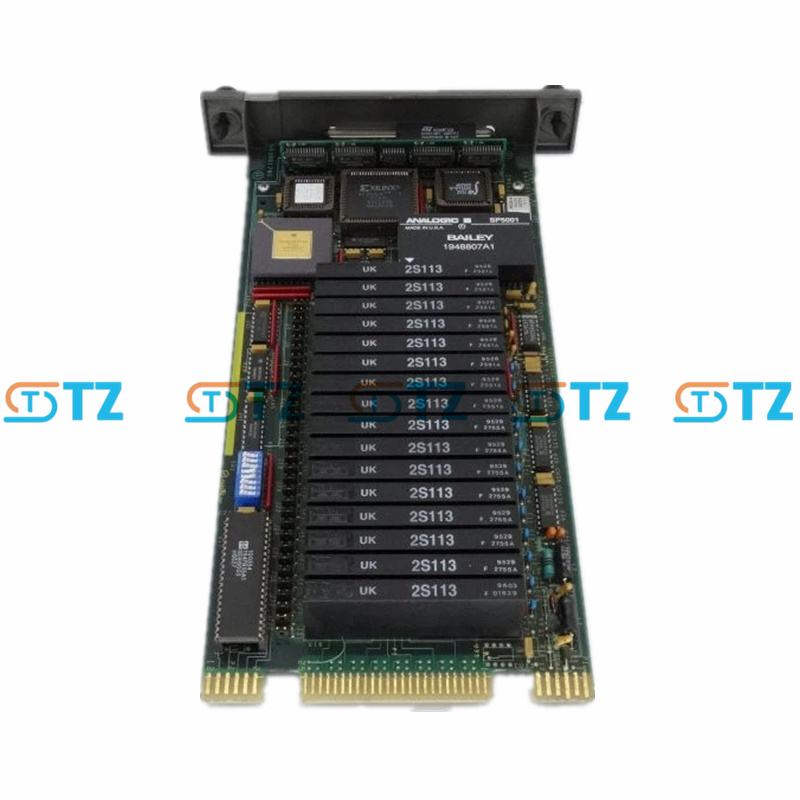

ABB IMASI03 is the Analog Input Slave Module in the ABB Bailey INFI 90 distributed control system (DCS).
HS CODE : 8538909200
Product No :
IMASI03 ABBManufacture :
ABBSize (cm) :
35.8*27.1*7.1Weight (kg) :
0.45Origin :
SwedenWarranty :
12 MonthLead Time :
Ready StockDescription :
ANALOG INPUT SLAVE MODULEProduct parameters
Product type: Analog Input Slave Module
Directory description :Bailey INFI 90 analog input module, supporting multi-channel configuration
Environmental category: Industrial grade, suitable for operating temperature 0-60°C, relative humidity 5%-95% (non-condensing)
Function
Multi-channel input: Supports 16 independent analog input channels, which can be configured as thermocouple, 3-wire RTD, millivolt, high-level and current input types, providing high-resolution signal acquisition.
Signal isolation: The inter-channel isolation voltage is 250 VDC to ensure noise suppression and signal integrity, supporting seamless communication with the main module.
Power supply requirements: + 5VDC and + 15VDC power supply, power consumption 4.0VA, compatible with INFI 90 system power supply.
Configuration flexibility: Configured through function code 216, it supports resolution adjustment and fault diagnosis, and is suitable for real-time process monitoring.
Reliability design: Built-in EMI protection and hot-swappable function to reduce maintenance interruptions.
Application scenarios
Industrial automation: Analog signal acquisition in distributed control systems (DCS) for monitoring process variables in factories.
Energy and power Generation: Power plant sensor interfaces ensure precise reading of parameters such as temperature and pressure.
Chemical engineering and oil and gas: On-site equipment signal input to enhance the safety and efficiency of process control.
Manufacturing process: Integrated into the automated line, handling multi-source analog data, supporting data logs and alerts.
System upgrade: As a compatible spare part for modules such as IMASI23, it enables the expansion and modernization of the legacy INFI 90 system.
