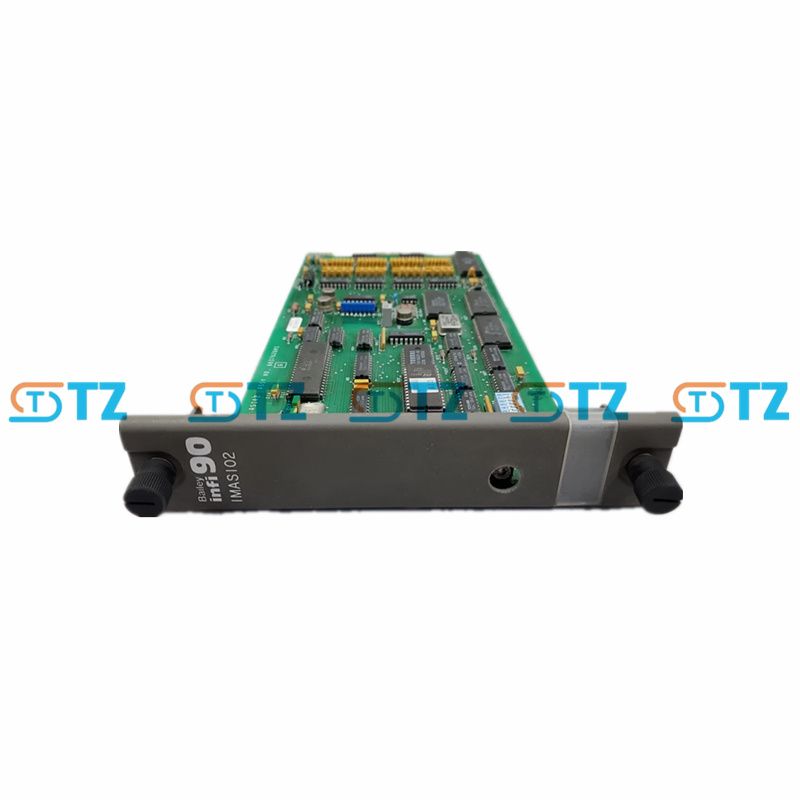

IMASI02 ABB ANALOG OUTPUT MODULE

Product parameters

Number of channels :16 channels

Input compatibility: Thermocouple (TC), RTD, millivolt (mV), 4-20 mA, 0-10 V

Input type: General analog input (conditional, filtered, isolated)

System compatibility :ABB Infi 90 DCS

Power supply: Compatible with 24Vdc (system standard)

Input resolution :10 bits (typical)

Accuracy :±0.15%

Operating temperature :-20°C to +60°C (Typical industrial environment)

Storage temperature :-40°C to +85°C

Humidity :5% to 95% (non-condensing)

Certification options: Standard industrial certifications (CE, UL, etc.)

Communication interface :Infi 90 bus interface

Function

Analog input processing: It provides 16-channel analog input, supporting TC, RTD, mV and standard analog signals, ensuring high-precision acquisition of process variables.

Signal conditioning: Built-in filtering, isolation and conversion functions optimize signal quality and reduce noise interference.

Modular integration: As a slave module of the Infi 90 system, it supports a master-slave architecture to ensure system redundancy and scalability.

Isolation protection: Provides isolation between channels to prevent the spread of faults and enhance system reliability.

Diagnostic support: Built-in status indication and error detection facilitate rapid troubleshooting and maintenance.

Compatible expansion: Seamlessly integrated with the ABB Infi 90 framework, supporting software configuration and remote monitoring.

Application scenarios

Process control system: It is used in DCS applications in the petrochemical, power and pharmaceutical industries, collecting analog signals such as temperature, pressure and flow to achieve automatic control.

Industrial automation optimization: In oil refineries, power stations and manufacturing industries, it supports multi-channel input expansion to enhance system response speed and data accuracy.

Data acquisition and monitoring: Integrated into the SCADA system for real-time process variable monitoring and historical data recording.

High-reliability environment: Suitable for heavy industrial and energy equipment, scenarios requiring general analog input, such as continuous production processes and safety-critical applications, but not for high-speed digital I/O or dedicated mechanical protection.
