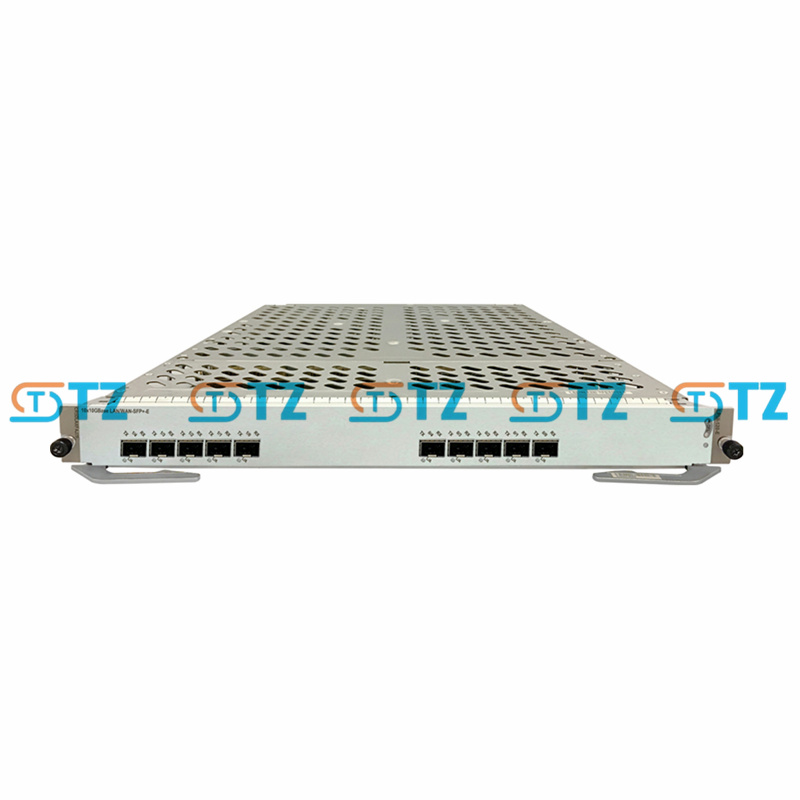

HUAWEI CR5DLAXFAJ7F FLEXIBLE LINE PROCESSING BOARD

Product Parameters

Forwarding Capacity: 240 Gbps (line-speed forwarding, full-duplex)

Interface Type: 24 x 10GBase LAN/WAN-SFP+ ports

Port Rates:

Each port supports 10 Gbps

Downward compatible with 1 Gbps (depending on the SFP+ module)

Port Modes:

Supports LAN and WAN modes (individually configurable per port)

WAN mode supports 1588v2 time synchronization (Master mode only)

Optical Module Support:

SFP+ modules (e.g., 10G SR, LR, ER)

Supports short-range multimode and long-range single-mode modules

Supported Protocols:

Ethernet: VLAN, QinQ, MPLS

Routing Protocols: OSPF, IS-IS, BGP, MP-BGP

QoS: Traffic classification, priority queuing, congestion management

Advanced Features: SRv6, EVPN, MPLS VPN, Flexible Ethernet (FlexE), NetStream

Time Synchronization: 1588v2 (Precision Time Protocol, PTP, in WAN mode)

Power Consumption: Approximately 150–250W

Operating Environment:

Operating Temperature: 0°C to 45°C

Storage Temperature: -40°C to 70°C

Relative Humidity: 5% to 95% (non-condensing)

Compatibility:

Compatible with NE40E series routers

Requires compatible firmware

Functions

The CR5DLAXFAJ7F offers a robust set of functions for high-density 10GE networking:

High-Speed Packet Forwarding:

Supports line-speed forwarding at 240 Gbps, ideal for high-bandwidth scenarios.

Ensures low latency and high reliability (system availability up to 99.999%).

High-Density 10GE Ports:

Provides 24 x 10GBase LAN/WAN-SFP+ ports, configurable for LAN or WAN modes.

Supports SFP+ optical modules for flexible transmission distances and fiber types.

Time Synchronization:

Supports 1588v2 (PTP) in WAN mode (Master mode only), critical for applications like 5G backhaul requiring precise timing.

Advanced QoS Management:

Provides granular traffic classification, priority scheduling, and congestion management.

Supports traffic shaping and congestion avoidance for critical application performance.

Multi-Protocol Support:

Supports MPLS, SRv6, EVPN, MPLS VPN, FlexE, and more for complex network architectures.

Enables IPv4/IPv6 dual-stack operation for seamless transition to IPv6.

High Reliability:

Supports hot-swappable operation for maintenance without service interruption.

Integrates with NE40E’s redundant design for high availability.

Intelligent Operations and Maintenance:

Supports telemetry and network automation for real-time monitoring and fault diagnosis.

Compatible with Huawei iMaster NCE for end-to-end network management.

Application Scenarios

Operator Metro and Core Networks:

Deployed in metro aggregation or core edge nodes, handling high-density 10GE traffic.

Supports broadband access with PPPoE/IPoE (if licensed), ideal for ISPs managing residential or enterprise subscribers.

Data Center Interconnect (DCI):

Facilitates high-speed 10GE interconnects between data centers.

Supports EVPN and VXLAN for cloud-native and virtualized data center networks.

5G Backhaul and Midhaul:

Meets the high-bandwidth and low-latency requirements of 5G transport networks.

Provides 1588v2 time synchronization for precise timing in 5G applications.

Enterprise WAN:

Serves as an aggregation node in large-scale enterprise WANs, supporting high-capacity connectivity.

Ensures QoS for critical applications like video conferencing and ERP systems.

Cloud Service Provider Networks:

Supports high-density 10GE connectivity for cloud infrastructure.

Enables scalable, virtualized services with SRv6 and MPLS VPN.
