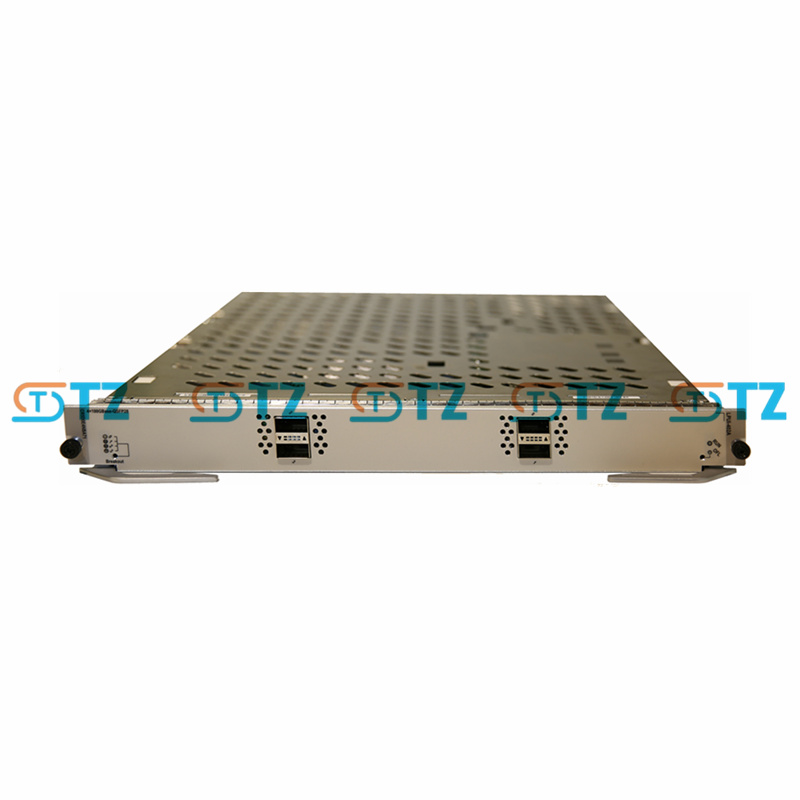

HUAWEI CR5D0E4NBA71 LINE CARD PROCESSING UNIT

Product parameters

Processing capacity:

Forwarding capacity: Up to 400Gbps line-speed processing (based on 4 100G ports).

Supports line-speed forwarding and is suitable for high-density traffic scenarios.

Supports FlexE interface, with a bandwidth range of 1000-3000 Mbps (depending on configuration).

Port support:

Port configuration: 4 100G BASE-QSFP28 ports, supporting FlexE.

Interface type: QSFP28 module, supporting 100GE LAN/WAN, compatible with optical modules (such as SR4, LR4).

Sub-card expansion is not supported, and the ports are fixed at 4 100G.

Protocol support:

Support IPv4/IPv6 dual-stack.

Advanced routing protocols: BGP, OSPF, IS-IS, MPLS, Segment Routing (SR), EVPN.

VPN services: L2VPN, L3VPN.

Quality of Service (QoS) : Traffic shaping, priority scheduling, congestion management.

FlexE: Supports flexible Ethernet slicing to optimize 5G and cloud network bandwidth.

Power consumption:

Typical range: approximately 300W to 600W (depending on the flow load).

Compatibility

Compatible with NE40E series routers (such as NE40E-X3, X8, X16).

Supports hot plugging for easy maintenance.

Function

High-performance forwarding: 400Gbps line-speed forwarding, hardware-level low-latency processing.

High-bandwidth ports: 4 100G QSFP28 ports, supporting FlexE slicing.

Advanced Protocol

Supports BGP, OSPF, IS-IS, MPLS, SR and EVPN.

L2/L3 VPN provides secure connections.

QoS management: Traffic priority, shaping, congestion avoidance, and ensuring critical business.

High reliability: Hot-swappable design, in combination with the main control unit, achieves redundancy.

Automation support: The VRP platform supports custom policies, telemetry, and SDN.

Application scenarios

Operator backbone network: High-density 100G traffic aggregation, supporting ISP core routing.

Enterprise core network: Provide high-performance routing for finance, energy and other industries, and FlexE optimizes bandwidth.

Data Center Interconnection (DCI) : High-bandwidth, low-latency connection, supporting SR and EVPN.

5G bearer network: Meeting the high bandwidth requirements of 5G base stations, FlexE supports network slicing.

SD-WAN and cloud networks: Support intelligent traffic scheduling and adapt to hybrid cloud/multi-cloud environments.
