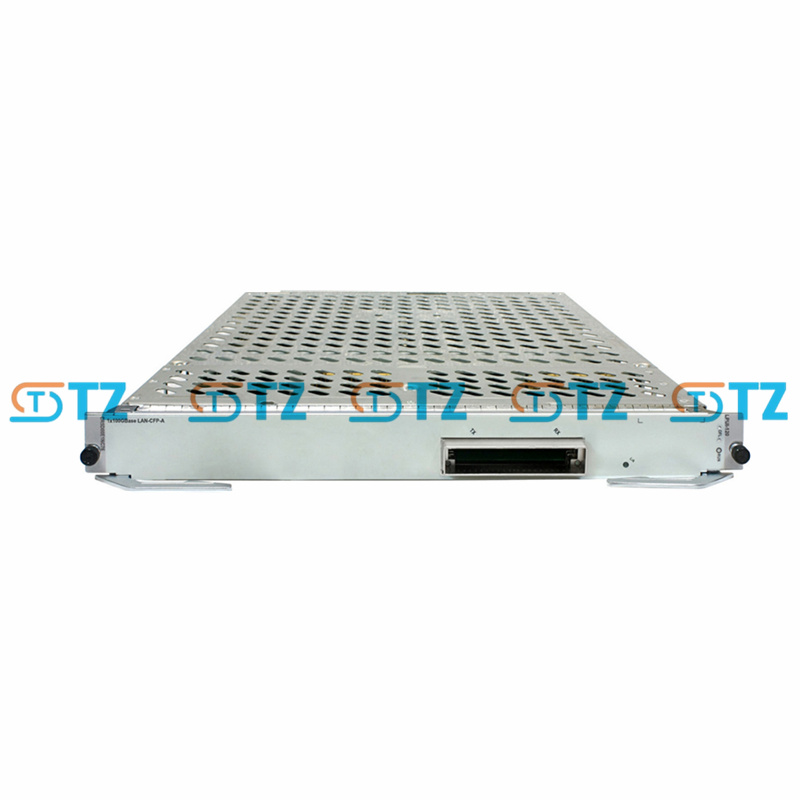

HUAWEI CR5D00E1NC76 HIGH-PERFORMANCE LINE CARD

Product parameters

Forwarding capacity: 120 Gbps (full-duplex, line-speed forwarding)

Interface type: 1 100GBase-CFP port

Port rate: 100 Gbps (Only supports LAN mode, not WAN mode)

Optical module support:

CFP optical module

Optical modules supporting different transmission distances

Protocol support:

Ethernet: Supports VLAN, QinQ, and MPLS

Routing protocols: Support OSPF, IS-IS, BGP, MP-BGP

QoS: Supports traffic classification, priority queues, and congestion management

Advanced features: Supports SRv6, EVPN, and MPLS VPN

Time synchronization: Supports 1588v2 (PTP, Precision Time Protocol)

PPPoE/IPoE support: The PPPoE/IPoE BRAS function is not supported by default

Power consumption: The typical power consumption is approximately 150-250 watts

Working environment

Operating temperature: 0°C to 45°C

Storage temperature: -40°C to 70°C

Relative humidity: 5% to 95% (non-condensing)

Compatibility: Applicable to NE40E series routers (such as NE40E-M2, X3, X8, X16)

Function

High-performance forwarding

It offers a line-speed forwarding capability of 120 Gbps and is suitable for high-bandwidth scenarios.

Support low latency and high reliability to meet the requirements of the core network.

Single 100GE port:

Equipped with one 100GBase-CFP port, it only supports LAN mode and is suitable for interconnection in backbone networks or data centers.

Supports CFP optical modules, suitable for different transmission distances and types of optical fibers.

Time synchronization

Supports 1588v2 (PTP), suitable for scenarios requiring high-precision time synchronization (such as 5G bearer networks).

Advanced QoS Management

Support refined traffic classification, priority scheduling and congestion management.

Provide traffic shaping and congestion avoidance functions to ensure the quality of service for critical businesses.

Multi-protocol support

Supports advanced network technologies such as MPLS, SRv6, and EVPN, and is suitable for complex network architectures.

Compatible with both IPv4 and IPv6 dual-stack, it meets the future network upgrade requirements.

High reliability

Supports hot plugging, which is convenient for maintenance and upgrade.

Combined with the redundant design of the NE40E router, it provides high availability

Function

High reliability: Combined with the redundant design of the NE40E router, it provides high availability (such as redundancy of the main control board and power supply).

Intelligent operation and maintenance: Supports Telemetry and network automation, facilitating real-time monitoring and fault diagnosis.

Compatible with Huawei iMaster NCE management system to achieve end-to-end network management.

Application scenarios

Operator core network

Deployed in the core layer of the backbone network or metropolitan area network, it handles high-bandwidth traffic.

Supports MPLS VPN and SRv6, providing flexible service carrying capacity.

Data Center Interconnection (DCI)

It is used for 100GE high-speed interconnection between data centers, ensuring low latency and high bandwidth.

Supports EVPN and VXLAN, and is compatible with cloud-based data center networks.

5G bearer network

Meet the high bandwidth and low latency requirements of 5G backhaul.

By using the 1588v2 time synchronization function, it supports the high-precision clock requirements of 5G networks.

Enterprise Wide area Network

Provide high-performance WAN connections for large enterprises, supporting high-speed communication between headquarters and branches.

Provide QoS guarantees to ensure the priority transmission of critical services (such as video conferencing and ERP systems).

Cloud service provider: Network infrastructure for cloud service providers, supporting the high bandwidth demands of virtualized and containerized applications.
