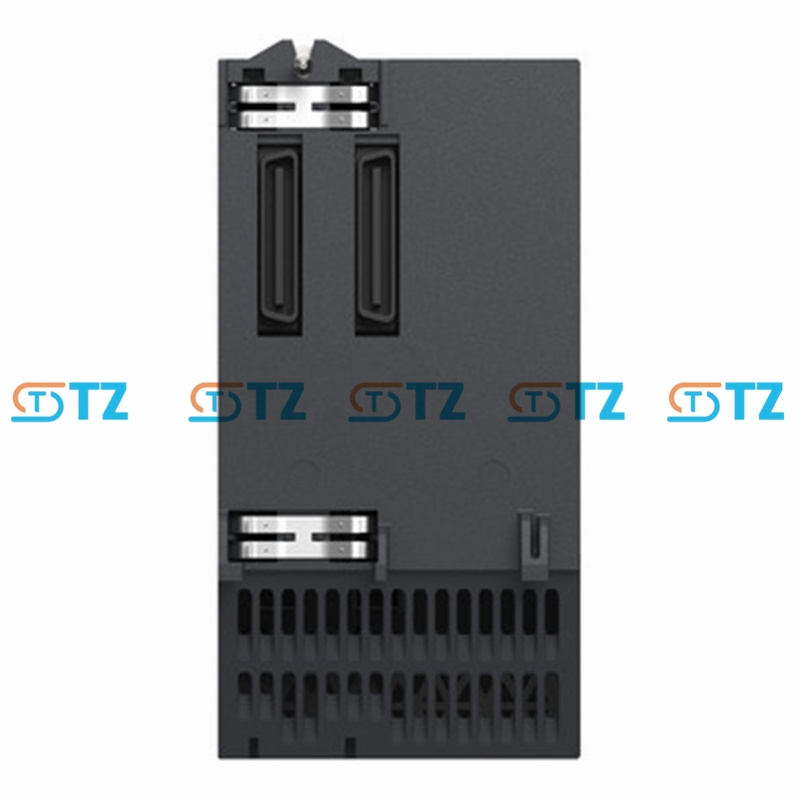

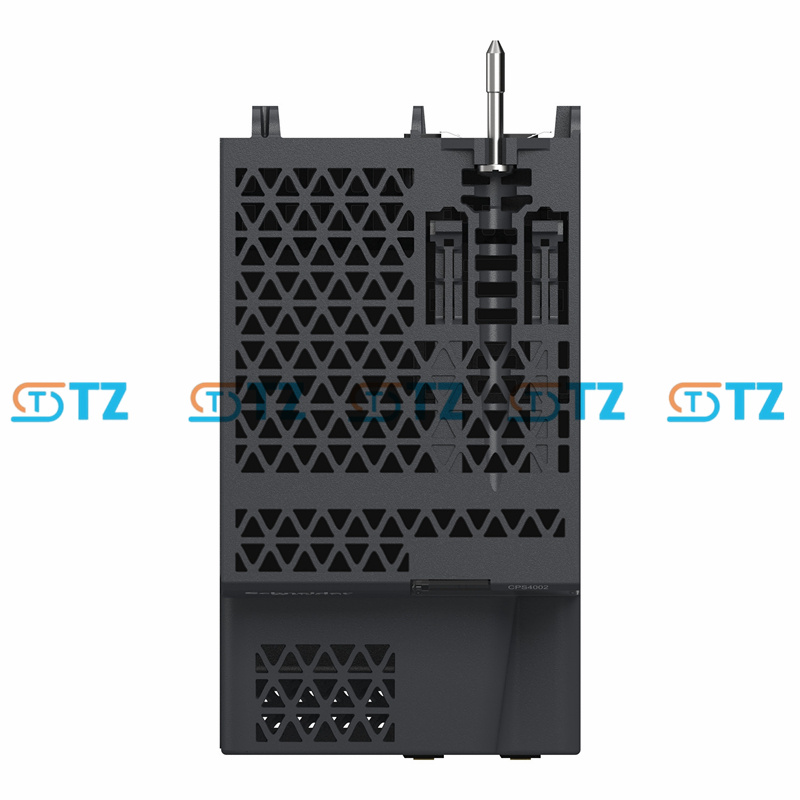

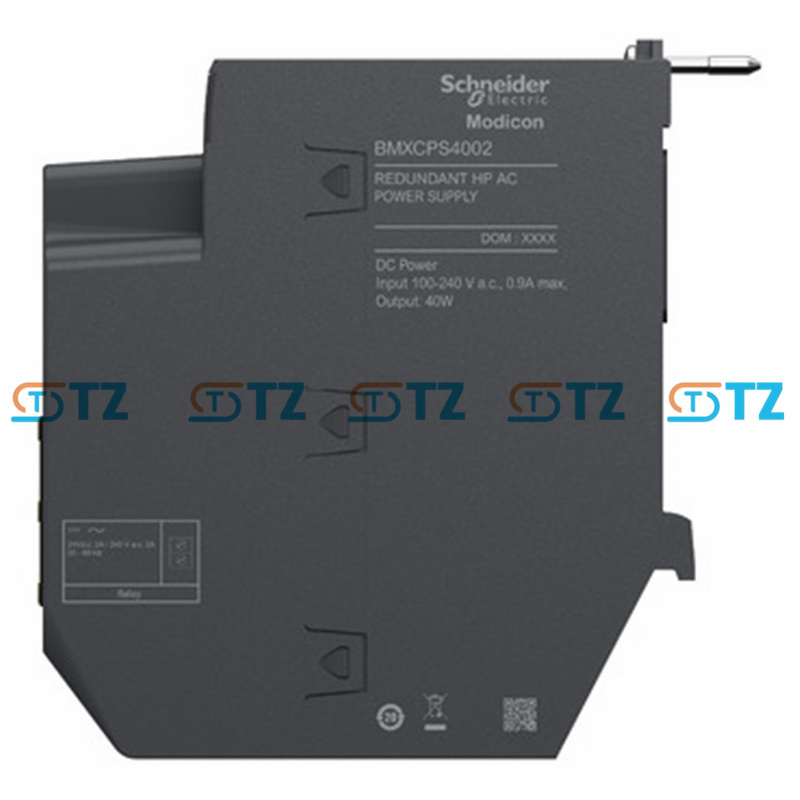

BMXCPS4002 Modicon X80 Series Power Module
The Schneider Electric BMXCPS4002 is a power module in the Modicon X80 family, designed to provide stable power support for multiple modules in industrial automation systems.
HS CODE : 8428909090
Product No :
BMXCPS4002Manufacture :
SchneiderSize (cm) :
30*40*60Weight (kg) :
0.51Origin :
FranceWarranty :
12 MonthLead Time :
Ready StockDescription :
Power ModuleProduct parameters
Manufacturer :Schneider Electric
Model :BMXCPS4002
Order Number :BMXCPS4002 (EAN: 3606480927515)
Input voltage :100-240 V AC (range: 85-264 V AC
Output voltage: 3.3V DC / 24V DC (dual output)
Output current: 1.67A @ 3.3V DC; 5.5A @ 24 V DC
Rated power :40 W
Power consumption :18-40 W (depending on the load)
Power dissipation: 8.5W
Surge current: 30 A @ 120 V 60 A @ 240 V
Apparent power: 0.07 kVA
Operating temperature: 0°C to +60°C (+32°F to +140°F)
Storage temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5% to 95% non-condensing
Protection grade: IP20
Installation method: Backplane/rack mounting, supports hot plugging
Compatibility: Modicon X80 series racks (such as BMXXBP0600, BMEXBP0602); Applicable to M340 and M580 PAC; Supports protocols such as Modbus TCP and Ethernet /IP
Certification
CE, CSA, UL, RCM, EAC; Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201
Function
Redundant power supply: Supports hot backup (HSBY) configuration, providing dual power supply redundancy to ensure seamless system switching in the event of a single power supply failure, thereby enhancing availability.
Voltage conversion and stabilization: Convert 100-240V AC input to 3.3V DC and 24V DC output, support wide range input fluctuations, and provide stable power supply to modules and I/O.
Diagnosis and Monitoring: Built-in LED indicator lights display power status, faults and redundant information, support temperature sensing, running time monitoring and remaining life diagnosis, and access advanced diagnosis via network.
Hot-swappable support: Allows for online module replacement without interrupting system operation, enhancing maintenance efficiency.
System integration: Communicates with the processor module via the X-bus bus and supports integration with the EcoStruxure Machine Expert software to achieve remote monitoring and configuration.
Application scenarios
Industrial process control: Used in petrochemicals, water treatment and manufacturing, it provides redundant power supply to support PLC and I/O modules, ensuring the continuous operation of critical processes.
Machine automation: In assembly lines, packaging equipment and CNC systems, backup power supplies reduce downtime and support highly reliable automation.
Distributed system: Combined with Modicon M580 PAC, it is suitable for remote rack expansion in large factories, providing efficient power management and fault diagnosis.
High availability environment: In power plants, pharmaceuticals or transportation systems, support redundant configuration to enhance system reliability and safety and reduce unexpected interruptions.
