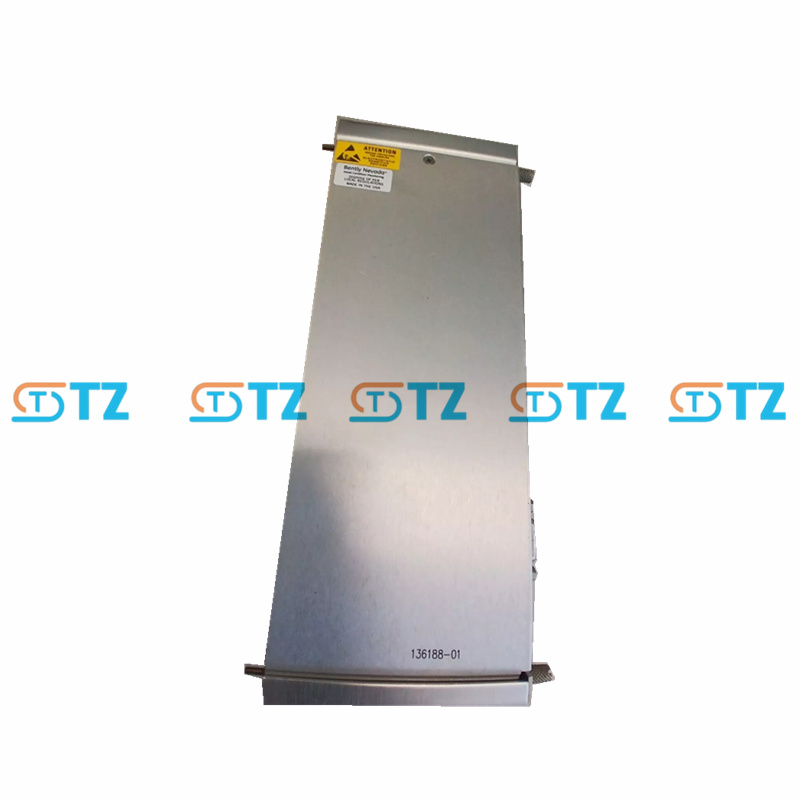

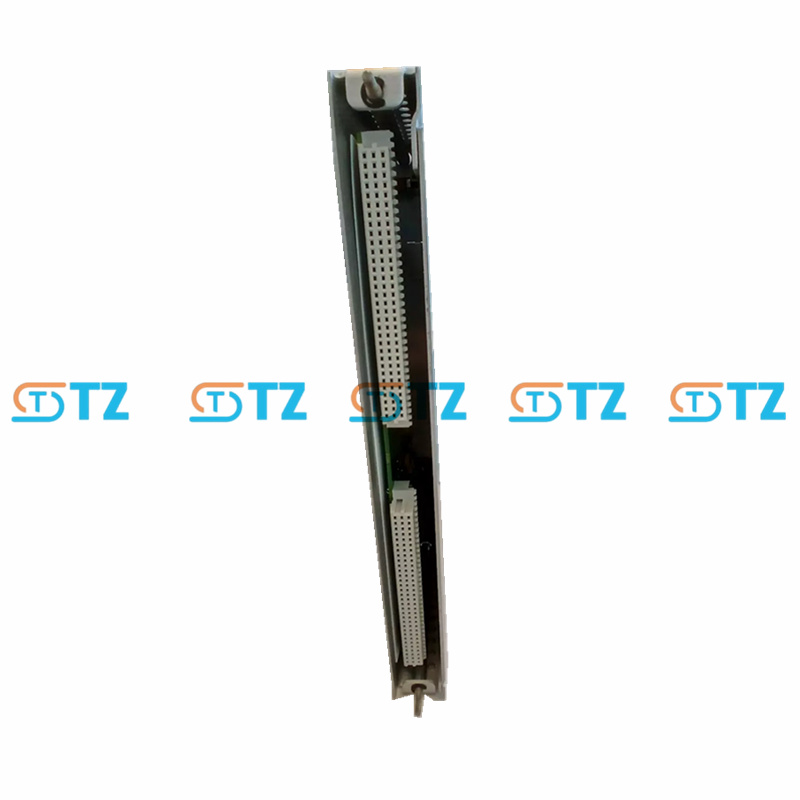

BENTLY NEVADA 3500/92M-04-01-00(136180-01+136188-02) COMMUNICATIONS GATEWAY MODULE

Product parameters

Input voltage: 24 V DC

Number of channels: Multi-channel communication interface (supporting RS232/RS422/RS485 and Ethernet)

Communication protocols: Modicon Modbus (serial), Modbus/TCP (Ethernet), proprietary Bently Nevada protocol (for Rack Configuration software)

Interface types: Ethernet TCP/IP, RS232/RS422/RS485 serial ports

Data rate: Modbus serial up to 19.2 kbps; Ethernet 10/100 Mbps

Compatible system: Bently Nevada 3500 series mechanical protection system

Operating temperature: -40°C to +70°C

Storage temperature: -52°C to +105°C

Power consumption: approximately 6W (typical value)

Cable length: Standard 500 ft (152 m), maximum supported 320 ft (98 m)

Function

Communication integration: Supports Modbus and Ethernet protocols, enabling bidirectional data exchange with DCS/PLC systems and providing real-time rack monitoring data.

Configuration support: Communicate with the 3500 Rack Configuration software via Ethernet for convenient remote parameter setting and diagnosis.

Data transmission: Collect and forward monitoring data such as vibration, temperature, and rotational speed, and support Modbus register access (except for the main value registers of the original 3500/90).

Redundant design: Built-in failover mechanism ensures high availability and supports expansion with I/O modules (such as RS485 modules).

Enhanced reliability: Suitable for high-noise environments, it provides signal isolation and error detection to ensure stable operation of the system under extreme conditions.

Application scenarios

Petrochemical and power generation industry: System integration for turbines, compressors and pumps, prevention of communication failures, and reduction of maintenance costs by approximately 30%.

Heavy industry equipment: Suitable for remote monitoring and data collection in extreme environments such as offshore drilling platforms and high-temperature processing production lines.

Predictive maintenance: Integrated into factory automation systems to achieve the goal of extending equipment lifespan by 20-40%, and supports joint monitoring with System 1 software.

Safety-critical applications: As a gateway component, it ensures real-time data transmission and safe operation of high-value assets such as generator sets and wind turbines.
