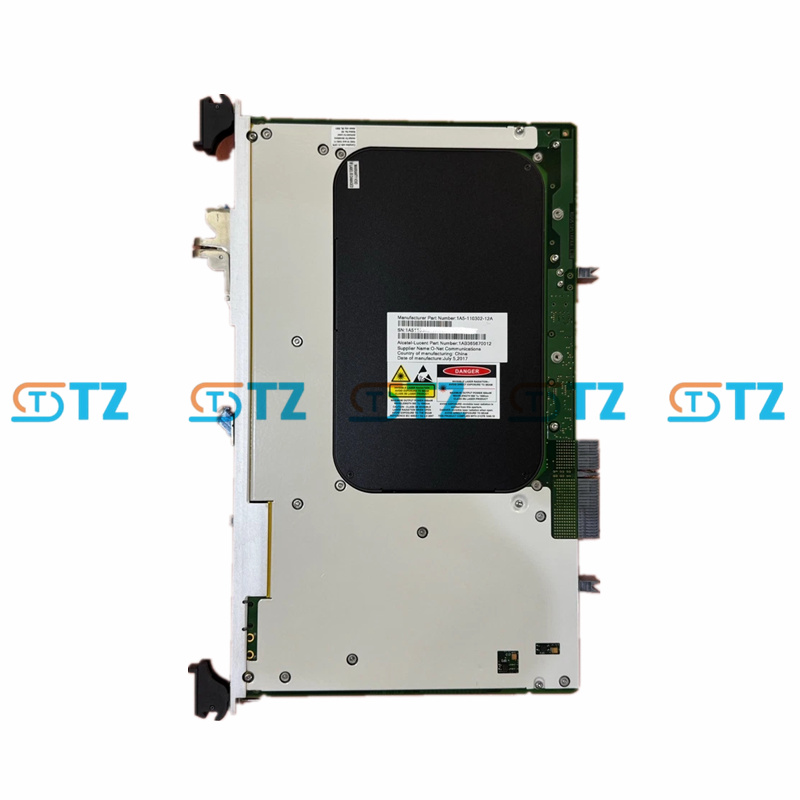

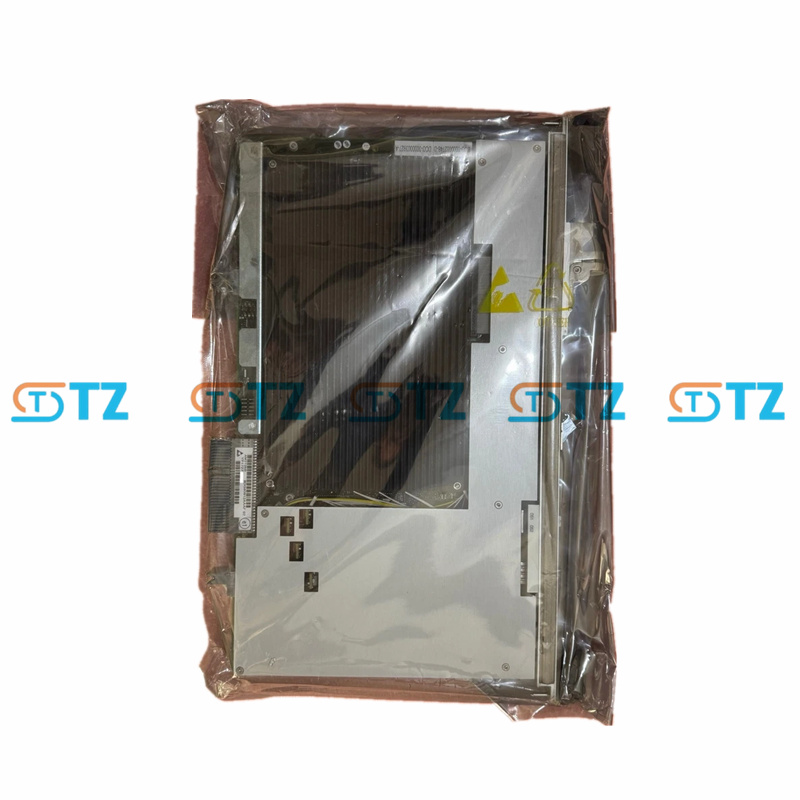

ALCATEL AM2125B 1830-PSS (8DG60912AA) BIDIRECTIONAL LINE AMPLIFIER MODULE
The Alcatel AM2125B 1830-PSS (8DG60912AA) is a bidirectional line amplifier module in the 1830 PSS series of photonic service switches for dense wavelength division multiplexing (DWDM) optical transmission networks.
HS CODE : 8538909200
Product No :
ALCATEL AM2125B 1830-PSSManufacture :
ALCATELSize (cm) :
25*12*2.5Weight (kg) :
0.8Origin :
FRANCEWarranty :
12 MonthLead Time :
Ready DRIVEDescription :
BIDIRECTIONAL LINE AMPLIFIER MODULEProduct parameter
Operating voltage: DC-48V (standard telecom power supply)
Power consumption: about 20W to 30W (depending on gain and load)
Interface type:
2 optical interfaces (Line In/Out, SC/PC or LC/PC connector)
Support C-band DWDM signal amplification (1528nm to 1568nm)
Gain range: 15dB to 25dB (adjustable, automatic gain control)
Optical power output: Max +17dBm (depending on configuration)
Noise factor: about 5dB to 6dB
Operating temperature: -5°C to +55°C (standard indoor environment) or -40°C to +65°C (extended range)
Protection level: IP20 (for indoor enclosures)
Feature
Optical signal amplification: provides bidirectional line amplification function to enhance DWDM signal strength and support long-distance transmission
Automatic gain control (AGC) : Dynamically adjusts the gain to ensure a stable output of the optical signal
Optical monitoring: Built-in optical power detection, support real-time monitoring of input/output signals
High reliability: Supports hot-swapable design and works seamlessly with other modules of the 1830 PSS, such as WSS and OTN boards
Management: Configure, monitor, and diagnose faults using the Nokia 5620 SAM or 1350 OMS network management system
Application scenario
Long-distance backbone network: used for long-distance optical transmission (such as hundreds of kilometers), support DWDM signal trunkless amplification
Man deployment: Enhances the optical signal strength in the MAN, which is suitable for network expansion in high-density areas
Data Center Interconnection (DCI) : Provides high-speed, reliable optical connectivity between data centers
Carrier infrastructure: Widely used in OTN/WDM networks of telecom operators to improve transmission capacity and coverage
