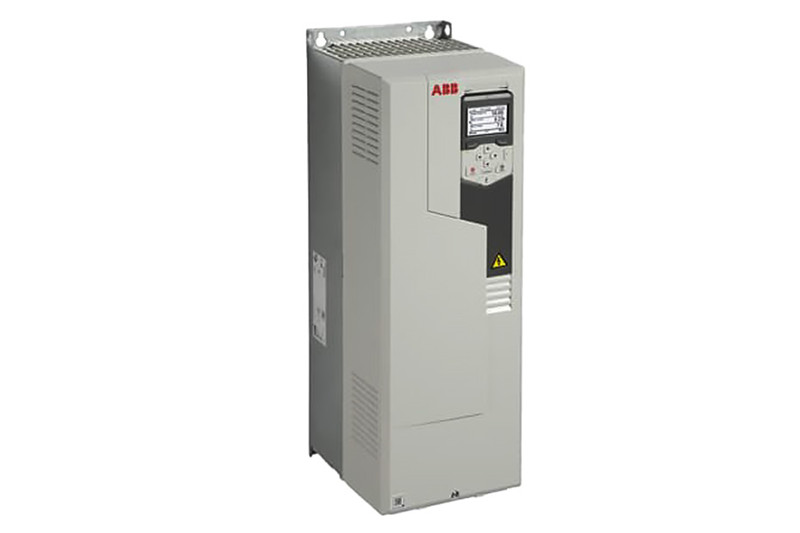

ABB ACS580 Standard General Purpose Variable Frequency Drive VFD

📝 PRODUCT INTRODUCTION

The ABB ACS580 is an all-compatible, wall-mounted and cabinet-built variable frequency drive designed to effortless control a wide range of industrial applications. Engineered to simplify drive selection, setup, and operation, the ACS580 is ideal for pumps, fans, conveyors, mixers, and compressors across multiple industries. It features a built-in assistant control panel with a user-friendly interface, embedded braking choppers, and a standard harmonic-mitigating swinging choke. This highly efficient drive optimizes process control while ensuring exceptional energy saving capabilities and minimal infrastructure impact.

⚙️ TECHNICAL PARAMETERS

Input Voltage Range: 3-phase 380V to 480V AC (+10 percent / -15 percent)

Power Range: 0.75 kW to 500 kW (1.0 HP to 700 HP)

Line Frequency: 48 to 63 Hz

Output Frequency Range: 0 to 500 Hz

Motor Control Modes: Scalar control for basic applications, Vector control for precise speed and torque accuracy

Supported Motor Types: Asynchronous induction motors, permanent magnet (PM) synchronous motors, and synchronous reluctance motors (SynRM)

Enclosure Protection Level: IP21 / UL Type 1 standard, IP55 / UL Type 12 available for harsh environments

Embedded Interfaces: Modbus RTU interface as standard

Optional Communication Networks: Profibus DP, PROFINET, EtherNet/IP, Modbus TCP, DeviceNet, EtherCAT, and CANopen

Functional Safety: Integrated Safe Torque Off (STO) conforming to SIL3 / PL e standards

💡 KEY FUNCTIONS

All Compatible Architecture: Shared software platform, user interfaces, and options across the entire ABB drive portfolio, minimizing training and maintenance costs.

Advanced Energy Saving: Built-in energy efficiency calculators track used and saved kilowatt-hours, carbon dioxide reduction, and monetary savings in real time.

Swinging Choke Technology: Patented built-in swinging choke mitigates harmonics significantly at both partial and full loads, protecting sensitive electrical grids.

Assistant Control Panel: Intuitive control panel supporting multi-language setups, primary settings menus, and built-in assistants to speed up commissioning.

Optimal Load Control: Delivers smooth torque production and excellent static speed accuracy, ensuring stable material handling and liquid pumping operations.

📐 DIMENSIONS

Frame Size R1 (0.75kW to 4.0kW 400V): Height 373 mm x Width 125 mm x Depth 223 mm

Frame Size R2 (5.5kW to 11kW 400V): Height 473 mm x Width 125 mm x Depth 229 mm

Frame Size R3 (15kW to 22kW 400V): Height 490 mm x Width 203 mm x Depth 229 mm

Frame Size R5 (30kW to 45kW 400V): Height 732 mm x Width 203 mm x Depth 295 mm

Frame Size R6 (55kW to 75kW 400V): Height 727 mm x Width 252 mm x Depth 369 mm

Note: All listed dimensions refer to the wall-mounted IP21 enclosure type.

⚖️ WEIGHT

Frame Size R1: 4.6 kg (10.1 lbs)

Frame Size R2: 6.6 kg (14.6 lbs)

Frame Size R3: 11.8 kg (26.0 lbs)

Frame Size R5: 28.3 kg (62.4 lbs)

Frame Size R6: 42.4 kg (93.5 lbs)
