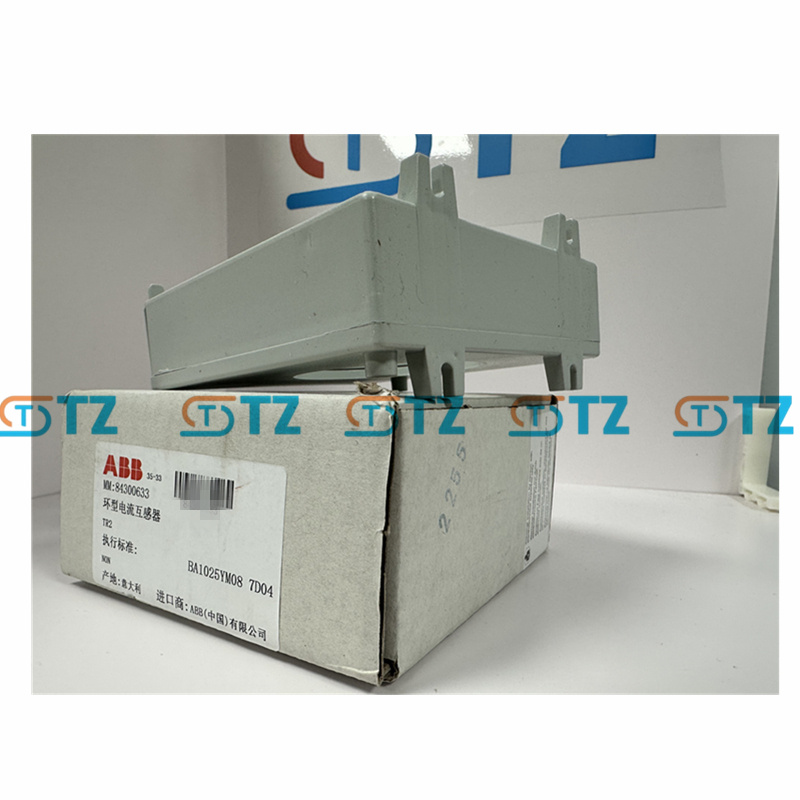

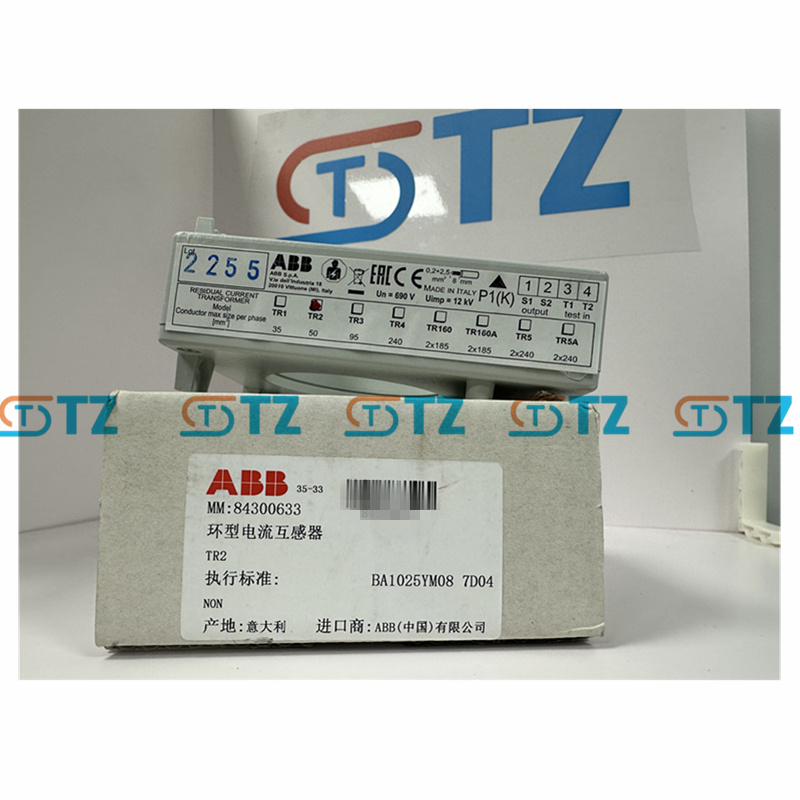

ABB 2CSG060100R1211 TR2 TOROIDAL CURRENT TRANSFORMER
ABB 2CSG060100R1211 TR2 is a Toroidal Current Transformer, specially designed for ABB's Residual Current Monitors (RCMs) for detecting leakage current.
HS CODE : 8538909200
Product No :
ABB 2CSG060100R1211 TR2Manufacture :
ABBSize (cm) :
10*11*5Weight (kg) :
0.23Origin :
SwedenWarranty :
12 MonthLead Time :
Ready StockDescription :
SWITCHBOARD DISPLAY UNITProduct parameters
Product Model: 2CSG060100R1211
Product Name: TR2 Toroidal Transformer
Main function: Residual current monitoring (RCM) uses a toroidal current transformer to detect leakage current
Inner hole diameter: 60mm
Input current: 30A (rated primary current)
Secondary output connection: Screw connection
Overcurrent limiting factor: FS 5
Insulation voltage: 1kVAC
Protection grade: IP20
Operating temperature range: -10°C to +70°C
RoHS status: Complies with EU Directive 2011/65/EU
Function
Leakage current detection: In conjunction with a residual current monitor, it detects leakage or ground fault current to ensure the safety of the electrical system.
Adjustable sensitivity and intervention time: Set the sensitivity and intervention time through minidip to meet the needs of different application scenarios.
Unified design: For the same diameter (60mm), TR2 provides a single version of the transformer for all relay sensitivity values, simplifying selection and installation.
High reliability: Screw connection is adopted to ensure stable connection. The IP20 protection rating is suitable for indoor industrial environments.
Modular compatibility: Applicable to ABB low-voltage product series (such as DIN rail-mounted equipment), it is convenient to integrate into the power distribution system.
Application scenarios
Industrial power distribution system: It is used in industrial environments such as factories and manufacturing workshops to monitor and protect the power distribution system from the influence of leakage or ground faults.
It is suitable for places that require highly reliable power supplies, such as chemical industry, metallurgy and heavy industry.
Commercial buildings: In the power distribution systems of commercial complexes, office buildings, hospitals and other places, it is used to ensure electrical safety and prevent accidents caused by leakage.
Data center: Monitor the leakage of key equipment, protect sensitive electronic devices and ensure uninterrupted power supply.
Energy Management and Maintenance: In conjunction with RCM equipment, it provides real-time leakage data to assist maintenance personnel in quickly diagnosing and eliminating electrical faults.
