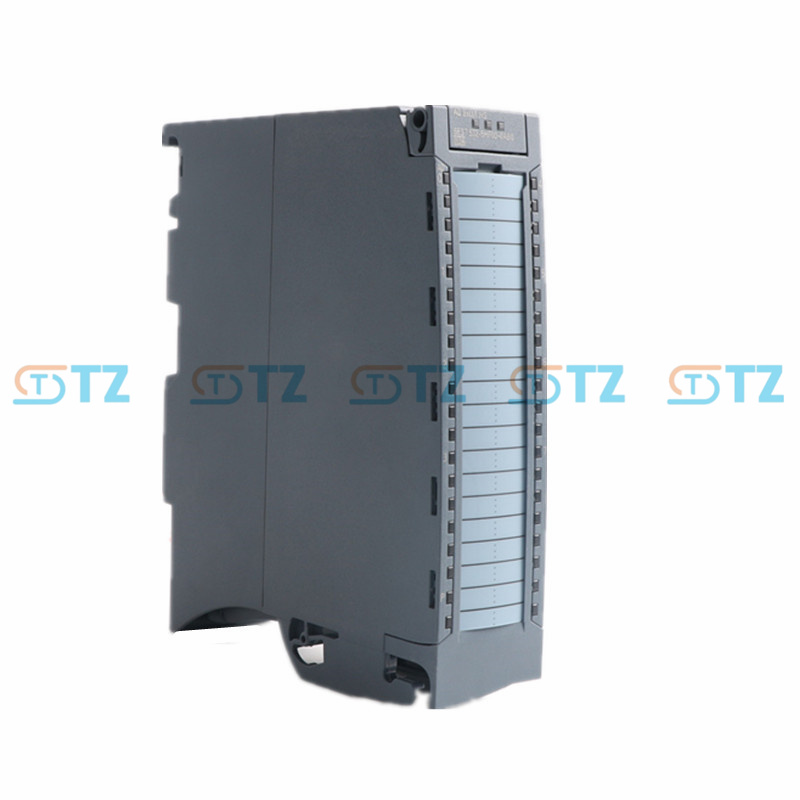

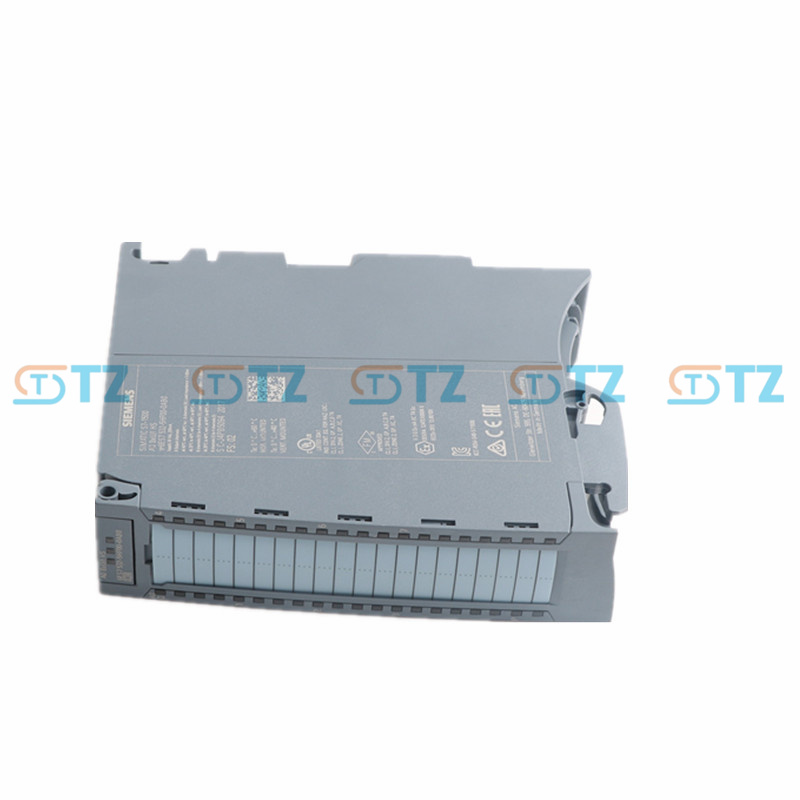

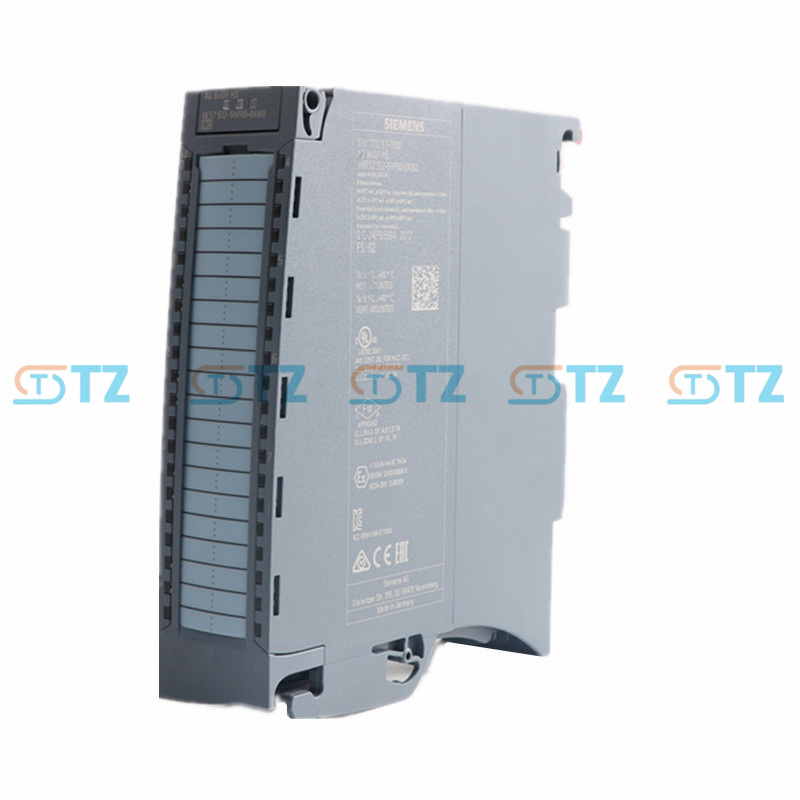

6ES7532-5HF00-0AB0 Siemens SIMATIC S7-1500 Analog Output Module

Product parameters

Output channel number: 8 channels (grouped into 1 group, with 8 channels in each group)

Output signal range: Voltage (U) : ± 10V, 0-10V, ± 5V, 0-5V; Current (I) : 0-20 mA, 4-20 mA, ±20 mA

Resolution: 16 bits

Accuracy: 0.3%

Update time: < 1 ms in High Speed (HS) mode

Isolation grade: Optical isolation between channels, common-mode voltage 10V

Communication protocol: PROFINET, S7-1500 module bus

Compatible system: Siemens SIMATIC S7-1500 series PLC

Operating temperature: -25°C to +60°C

Storage temperature: -40°C to +70°C

Power consumption: approximately 5W (typical value)

Diagnostic functions: Channel fault diagnosis, hardware interrupts (2), over-limit/under-limit thresholds

Certifications: CE, UL, IEC 61131

Function

Analog output control: Supports 8-channel multi-functional output (U/I) to achieve precise analog signal drive and linearization processing of industrial actuators.

Diagnosis and Interruption: Built-in channel-level diagnosis (such as open circuit, short circuit) and hardware interruption, supporting threshold triggering, facilitating real-time fault detection.

Flexible configuration: The output mode is configured through the TIA Portal software, supporting hot plugging and module-level diagnosis.

Data integration: Seamlessly integrated with the S7-1500 system, it provides real-time output data and diagnostic information, facilitating remote monitoring and historical recording.

Enhanced reliability: Suitable for high-noise and vibration environments, ensuring stable operation of the system under extreme conditions. Supports safety integration (SIL support) and front connectors (ordered separately).

Application scenarios

Petrochemical and power generation industries: Analog output drive for process control actuators, preventing signal drift faults and reducing maintenance costs by approximately 25%.

Heavy industry equipment: Suitable for multi-signal output protection in environments such as automated production lines and pumping stations.

Predictive maintenance: Integrated into factory automation systems, it achieves the goal of optimizing equipment response time by 20-30% and supports joint monitoring with digital I/O and sensors.

Safety-critical application: As an output component of S7-1500, it ensures the stable operation of high-value assets such as control cabinets and substations.
