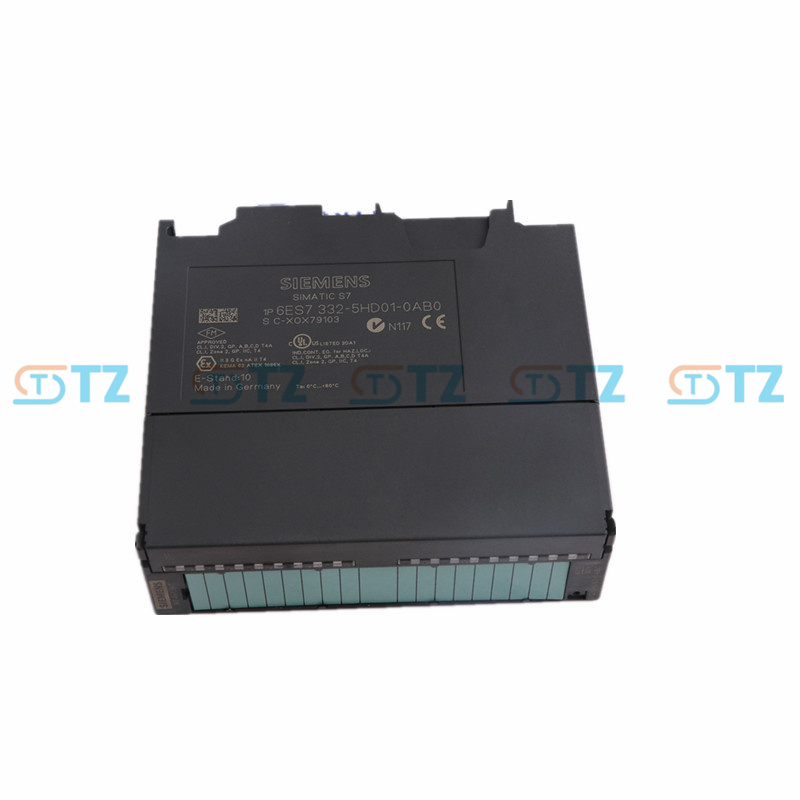

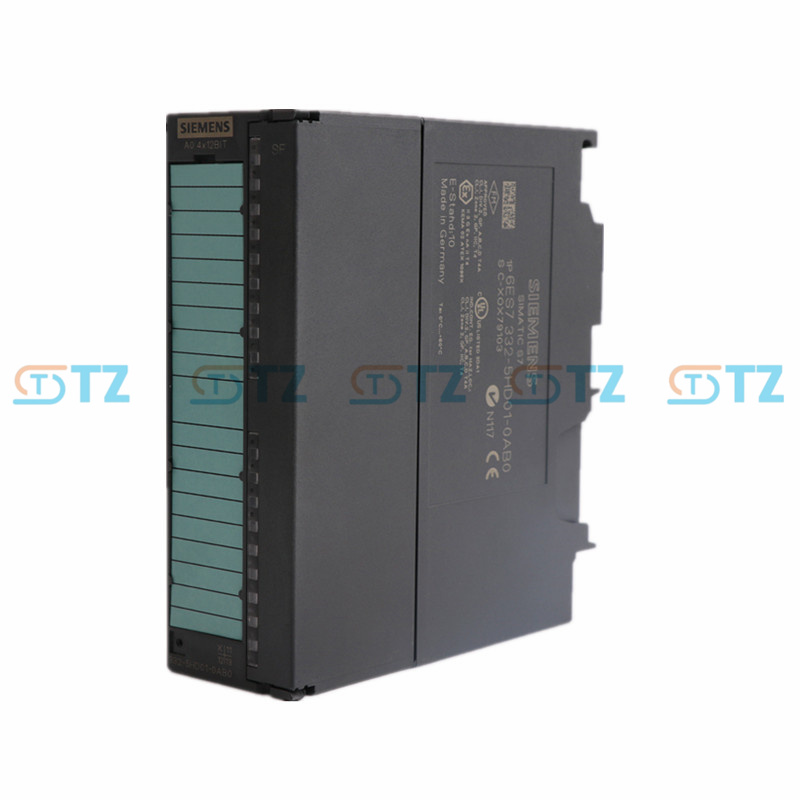

6ES7332-5HD01-0AB0 Siemens Simatic S7-300 Analog I/O Module

Product parameters

Output channels: 4 channels, supporting dual output modes of voltage and current.

Signal types: Voltage output (0-10V, 1-5V, -10V to +10V), current output (0-20mA, 4-20mA).

Resolution: 12-bit (voltage output), 11-bit (current output).

Load requirements: The minimum voltage output load is 1kΩ, and the maximum current output load is 500Ω.

Power supply voltage: DC 24V, typical power consumption 3W.

Isolation level: Optical isolation between channels and between channels and backplane buses, with an isolation voltage of 500V DC.

Ambient temperature: Operating temperature 0°C to 60°C, storage temperature -25 °C to +65°C.

Product function

Digital-to-analog conversion: Convert the digital control signals of the PLC into standard industrial analog signals, with stable output accuracy.

Anti-interference design: Through photoelectric isolation and shielding optimization, the signal stability in complex industrial electromagnetic environments is enhanced.

Fault diagnosis: It is equipped with channel-level fault diagnosis function, supporting short circuit and overload detection, and visually indicating the fault status through LED indicator lights.

Fast response: Low communication latency with the S7-300 backplane bus, meeting the signal update requirements of medium and high-speed industrial control.

Application scenarios

Process industry control: In the chemical, petroleum, and pharmaceutical industries, it is used to regulate equipment such as control valves and frequency converters, achieving closed-loop control of process parameters such as flow, pressure, and liquid level.

Manufacturing automation: In automotive and electronic manufacturing production lines, servo actuators and proportional valves are driven to perform precise positioning, speed regulation and other actions.

Energy and infrastructure: In the power and water treatment industries, control the operating parameters of pumps and fans to optimize energy consumption and the stability of working conditions.

Test equipment matching: As the signal output unit of the industrial test system, it provides standard analog excitation signals and is compatible with various sensor calibration and equipment detection scenarios.
