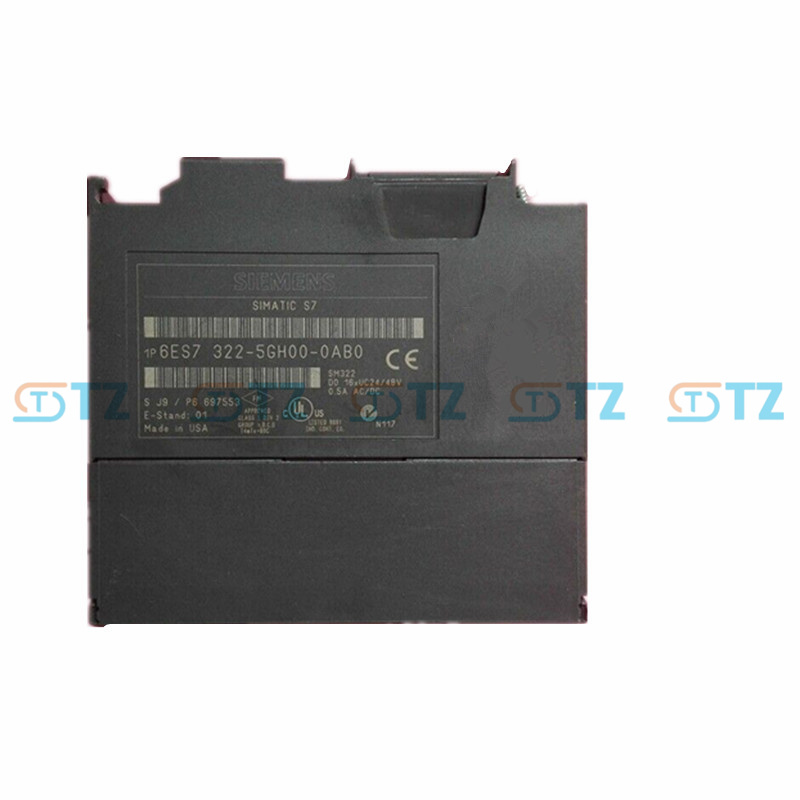

6ES7322-5GH00-0AB0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Power supply voltage: DC 24V, the lower limit of the allowable range is 20.4V and the upper limit is 57.6V.

Input current: The maximum value from the load voltage L+ (no-load) is 200mA, and the maximum value from the backplane bus DC 5V is 100mA.

Number of digital output terminals: 16.

Output current: The rated value of signal "1" is 0.5A, and the maximum allowable surge current is 1.5A (lasting for 50ms) and 1A (lasting for 2s each time). The maximum residual current of signal "0" is 10µA.

Switching frequency: The maximum value is 10Hz under resistive load, and 0.5Hz under inductive load and lighting load.

Wire length: The maximum length of shielded wires is 1000m, and that of unshielded wires is 600m.

Function

Signal output: It adopts photoelectric isolation, with 16 digital output channels. Signal output is carried out through solid-state relays, capable of outputting AC/DC 24-48V signals. The rated output current of each channel is 0.5A, which can drive loads of a certain power.

Diagnostic function: It is equipped with a diagnostic alarm function, which can be parametrically set. It can detect the working status of the module and abnormal conditions of the connected load, such as short circuit and overload, and send diagnostic information to the PLC, facilitating maintenance and fault detection.

Communication function: Supports multiple communication methods such as programming device/OP communication, global data communication, S7 basic communication, and S7 communication (server only), and can exchange data and work collaboratively with other devices.

Application scenarios

Manufacturing industry: On various production lines, it is used to control the start and stop of motors, the opening and closing of valves, and the actions of actuators such as cylinders, to achieve automated control of the production process, such as in the production lines of automobiles and electronic equipment.

Packaging machinery: It can control each action link of packaging equipment, such as the conveying, sealing, cutting and other operations of packaging bags, ensuring the accuracy and efficiency of the packaging process.

Textile machinery: It is used to control various components of textile machines, such as rollers, spindles, solenoid valves, etc., to achieve the automatic control of textile processes, improve the quality of textile products and production efficiency.

Machine tool manufacturing: It can control actions such as tool exchange, coolant switch, and worktable movement of the machine tool, and in combination with the numerical control system, achieve precise processing operations.
