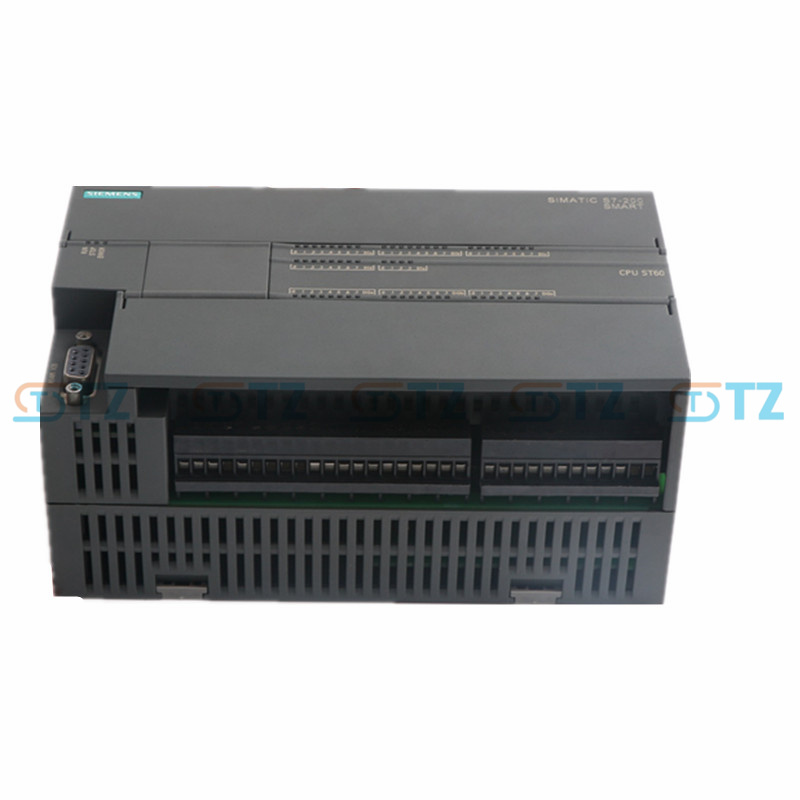

6ES7288-1ST60-0AA0 Siemens SIMATIC S7-200 SMART CPU ST60 CPU

Product parameters

Model: 6ES7288-1ST60-0AA0

Product Type: SIMATIC S7-200 SMART Series Central Processing Unit (CPU ST60, DC/DC/DC)

Power supply:

Power supply voltage: 24V DC

Allowable range: 20.4V DC to 28.8V DC

Power consumption: Approximately 18W (typical value)

Memory

Program/Data memory: 50 KB (Working memory)

Loading memory: Up to 8 MB (via MicroSD card)

Data retention: No battery required, EEPROM supported

Digital quantity I/O

Digital input: 36 points, 24V DC (drain type/source type)

Digital output: 24 points, 24V DC (Transistor output, 0.5A per point)

Analog I/O: No built-in analog I/O, which can be supported through expansion modules

Communication interface:

One PROFINET interface (Ethernet, RJ45), supporting TCP/IP and MODBUS TCP

One RS485 port, supporting PPI, MODBUS RTU and free port communication

Maximum baud rate: 187.5 kbit/s (RS485)

Counter:

Six high-speed counters (four at 100 kHz and two at 30 kHz)

Pulse output

Three high-speed pulse outputs (PTO, up to 100 kHz)

Processing speed:

Boolean instruction execution time: approximately 0.15 µs per instruction

Expansion capability:

It supports up to 6 expansion modules and 1 signal board at most

Total I/O points: Up to 188 digital points or 44 analog points

Operating temperature: 0°C to 55°C

Certification: CE, in compliance with industrial standards

Status: Discontinued. The replacement model is 6ES7288-1ST60-0AA1

Function

High-performance compact control: Integrated with 36-point digital input and 24-point digital output, 50 KB memory, suitable for medium-sized automation tasks, offering high cost performance.

PROFINET communication: Built-in Ethernet port, supporting real-time communication, and can be integrated with HMI, SCADA or other PLCS to enhance networked control capabilities.

High-speed processing: 6 high-speed counters (up to 100 kHz) and 3 high-speed pulse outputs (up to 100 kHz), supporting rapid signal processing and motion control.

Flexible expansion: Supports 6 expansion modules and 1 signal board, allowing for the expansion of digital, analog or communication modules to meet various application requirements.

Programming support: The STEP 7-Micro/WIN SMART software is used, supporting ladder Diagram (LAD), Function Block Diagram (FBD), and statement List (STL) to simplify program development.

MicroSD card support: Supports program backup, firmware upgrade and data logging, facilitating maintenance and data management.

Diagnostic function: It provides LED (RUN, STOP, ERROR) and I/O status indications for operation status, and supports online monitoring and fault diagnosis.

Multi-protocol support: The RS485 port supports MODBUS RTU and free port communication, enhancing compatibility with third-party devices.

Application scenarios

Industrial Automation

Packaging machinery: Control high-speed packaging lines, handle counting, positioning and switch quantity control, such as sealing machines or labeling machines.

Conveying system: Manages the conveyor belt or logistics sorting equipment and communicates with the upper computer via PROFINET.

Mechanical manufacturing

CNC machine tools: Control stepper motors or small servo drives to achieve precise positioning and motion control.

Injection molding machine: Manage heating, pressure and motion control, providing rapid response and reliable logic processing.

Process control

Water treatment: Control pumps, valves and flow meters, and collect analog signals through expansion modules.

Food and beverage: Manage filling or mixing equipment to ensure production efficiency and accuracy.

Building Automation

HVAC system: Controls ventilation or cooling equipment, integrates Ethernet and building management systems.

Lighting control: Manage the intelligent lighting system of commercial buildings.

Education and Training

It is used for the PLC teaching platform to learn PROFINET communication and motion control, and is suitable for beginners in industrial automation.
