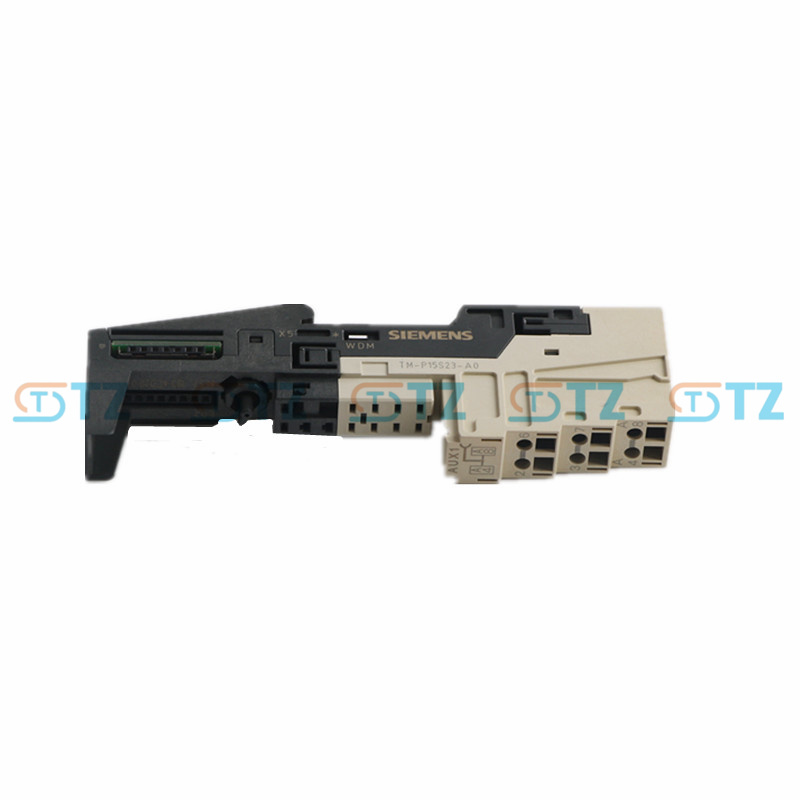

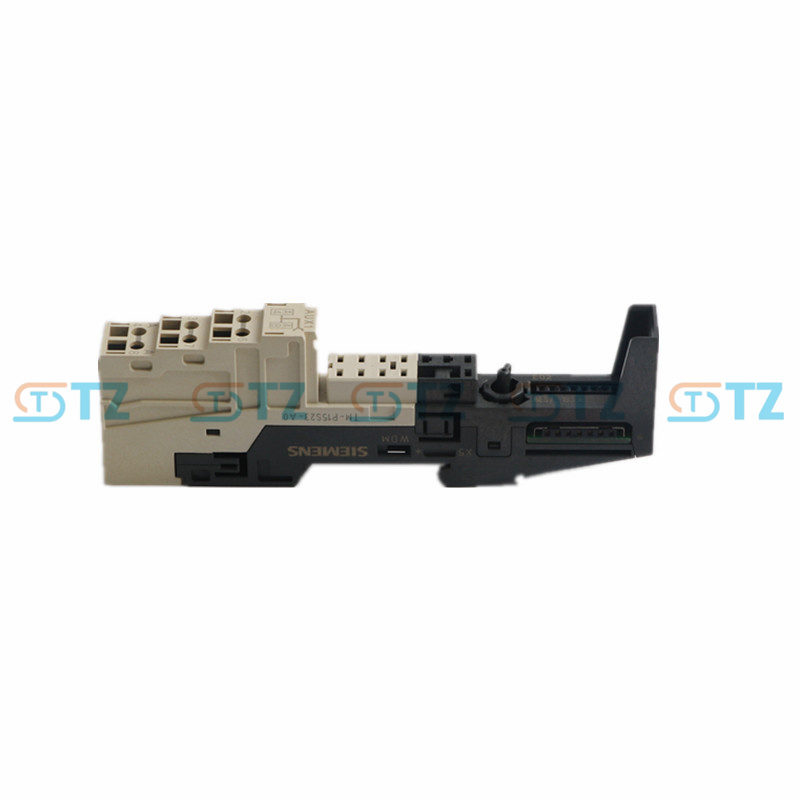

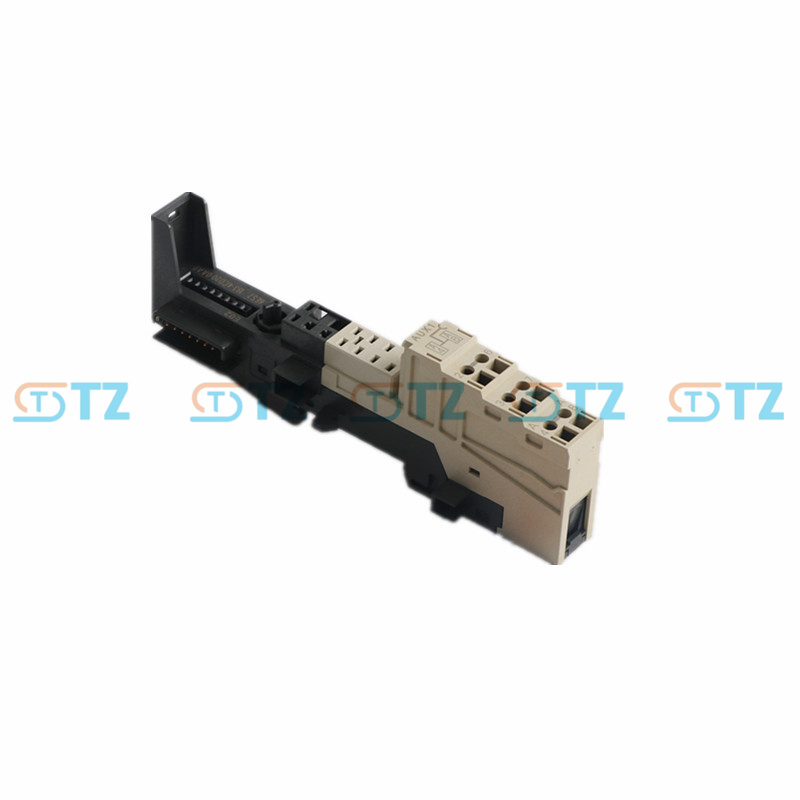

6ES7193-4CD20-0AA0 Siemens SIMATIC DP Terminal Module

Product parameters

Model: 6ES7193-4CD20-0AA0

Series: SIMATIC ET 200S

Function: Terminal module TM-P15S23-A0, used for 15mm wide power modules

Terminal type: Screw-type terminal block

Terminal configuration: 2x3 terminal connection, with AUX1 terminal access and AUX1 disconnection

Packaging unit: 1 module/package

Applicable module width: 15mm

Power supply voltage: 24V DC (powered by the bus module)

Current capacity: Maximum 10A (depending on module and system configuration)

Operating temperature: 0 to 60°C

Storage temperature: -40 to 70°C

Relative humidity: 10 to 95% (no condensation)

Protection grade: IP20

Certification: CE, UL, cULus, in compliance with REACH regulations

Function

Modular connection: Provides reliable power and signal connections for the 15mm wide power module in the ET 200S distributed I/O system.

Screw-type wiring: Screw-type terminals are adopted to ensure a firm electrical connection, making it suitable for high-vibration scenarios in industrial environments.

Flexible installation: Supports DIN rail installation. The compact design makes it easy to install in small control cabinets.

Compatibility: Compatible with the ET 200S system, it can be connected to the central controller or ET 200S IM (interface module) via PROFIBUS or PROFINET.

Diagnostic support: Monitor the connection status through system diagnostic functions (such as LED indication or software alarm) to simplify troubleshooting.

Modular expansion: Supports the expansion of up to 64 I/O modules in the ET 200S system, suitable for various automation configurations.

Self-assembled potential rail: Integrated self-assembled potential rail reduces wiring workload and control cabinet space requirements.

High data security: The backplane bus comes with a built-in shielding function, enhancing the reliability of data transmission.

Application scenarios

Process control: Providing reliable connections for power modules in industries such as chemical engineering and pharmaceuticals.

Manufacturing automation: For power distribution and signal processing on production lines.

Machine control: Supports the stable operation of power modules in equipment such as packaging machines and conveying systems.

Distributed control: Suitable for distributed I/O applications within small control cabinets, connected to PROFINET or PROFIBUS networks.
