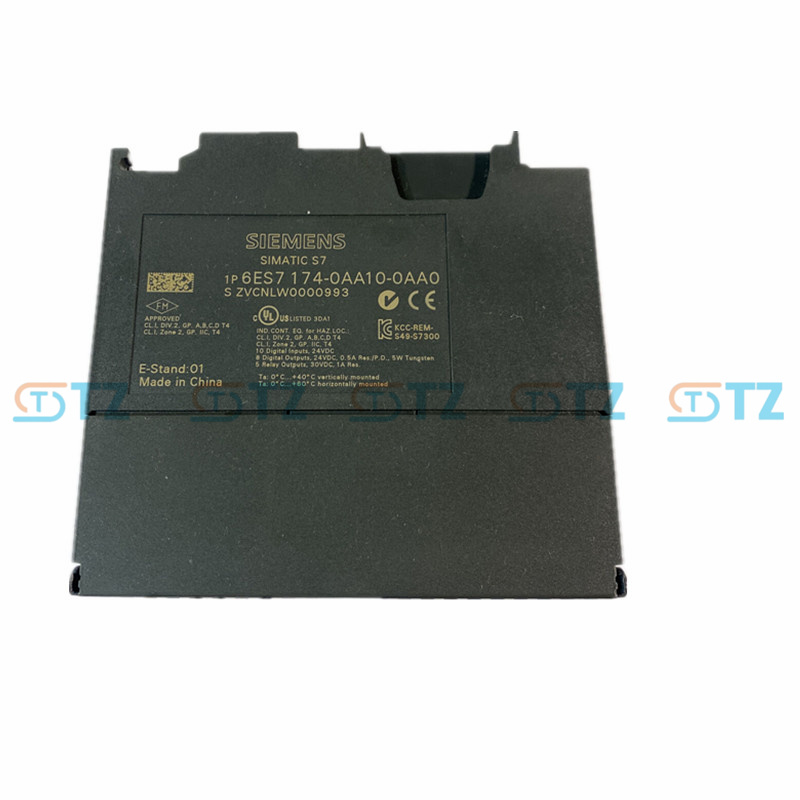

6ES7174-0AA10-0AA0 Siemens Simatic S7-300 INTERFACE MODULE

Product parameters

Basic connection specifications: Supports connection to 4 drivers with analog setting value interfaces or pulse direction interfaces, equipped with 4 channels, including 4 encoder inputs and 4 analog output channels. Compatible with clock synchronization PROFIBUS DP communication

Power supply and power consumption: The working power supply is 24V DC, and the allowable fluctuation range is 20.4-28.8V DC. Typical power consumption: 12W; The backplane bus 5V DC has a maximum power consumption of 100mA and can also provide 5V and 24V power supply for sensors

Digital I/O ports: including 10 digital input terminals, 8 24V DC digital output terminals and 4 relay contact digital output terminals. The digital input signal "0" corresponds to a voltage of -3 to + 5V, and "1" corresponds to a voltage of 11 to 30V. The minimum input delay is 15μs, and the typical input current at signal "1" is 8mA

Compatible controllers: Compatible with CPU 31x-2 DP and CPU 31xt-2 DP of the S7-300 series, CPU 41x-2 DP of the S7-400 series, as well as WinAC RTX 2008, Simotion series and other controllers and external encoders

Software and physical characteristics: Parameter configuration needs to be carried out in conjunction with the Step7 V5.4 SP4 version software.

Function

Multi-driver integrated connection: A single module can simultaneously connect to 4 drivers, covering various types such as electrical drivers, hydraulic drivers, and stepper drivers. Without the need for additional expansion modules, centralized connection of multiple drivers can be achieved, significantly simplifying the wiring and hardware layout of multi-driver systems.

Clock synchronization communication: By relying on the clock synchronization PROFIBUS bus to transmit signals, it can ensure the synchronization of driver control instructions and encoder feedback signals, reduce signal transmission delay, and provide communication support for precise linkage in motion control (such as multi-axis coordinated actions).

Multi-signal collaborative processing: By inputting 4 channels of encoders, feedback signals such as the position and rotational speed of the driver are collected in real time. Then, control instructions are issued through 4 channels of analog output. Combined with digital I/O ports, auxiliary controls such as the start and stop of the driver and fault triggering are achieved, forming a complete loop of "feedback - control - execution".

Flexible configuration and adaptation: With the Step7 software, the connection parameters of the driver, signal range, communication protocol details, etc. can be flexibly configured to meet the access requirements of drivers of different brands and specifications. The control logic can be adjusted to adapt to process changes without modifying the hardware.

Application scenarios

In the field of machine tool processing: In CNC machine tools and machining centers, multiple stepper drivers or servo drivers can be connected to control the coordinated movement of the spindle and each feed axis. Through encoder feedback, precise tool positioning and cutting actions are achieved to ensure processing accuracy.

Automated production line: It is used in scenarios such as assembly line conveying equipment and transplanting robotic arms. It is a simulated driver that connects multiple drive motors to achieve synchronous conveyor belt speed and multi-joint linkage of robotic arms, meeting the rhythmic operation requirements of the production line.

Heavy industry drive control: In large-scale equipment in industries such as metallurgy and chemical engineering, it is compatible with hydraulic drives and high-power electrical drives. For instance, it controls the roller shaft speed of steel rolling equipment and drives the stirring device of chemical reaction vessels. Through synchronous control, it ensures the stability of the production process.

Specialized automated equipment, such as printing machines and packaging machines, can be connected to multiple sets of drivers to control actions like paper conveying, printing roller rotation, and packaging film traction. Through precise drive coordination, it ensures the accuracy of printing registration and the consistency of packaging dimensions.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
