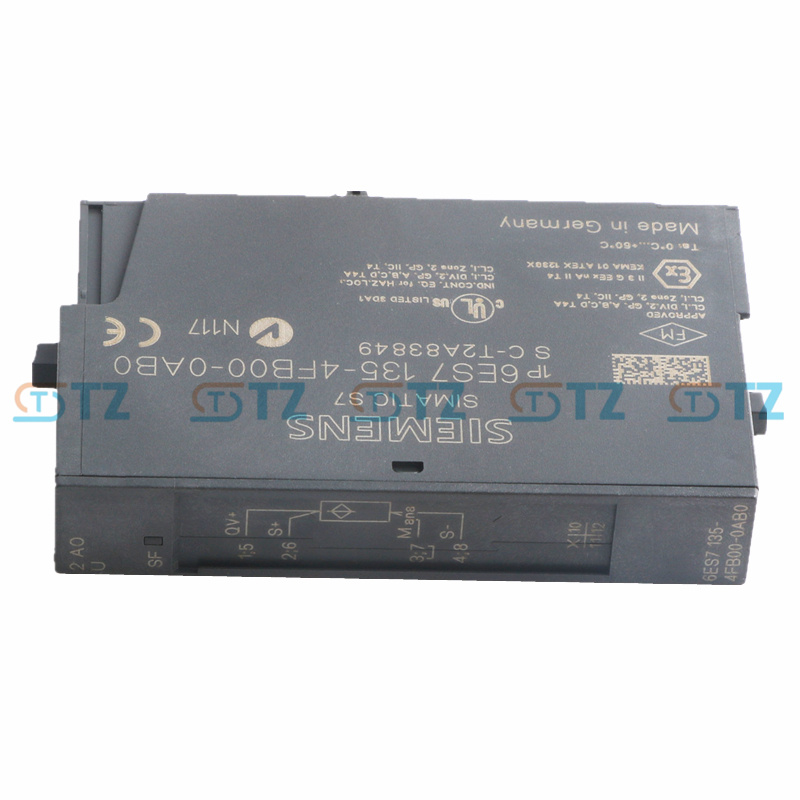

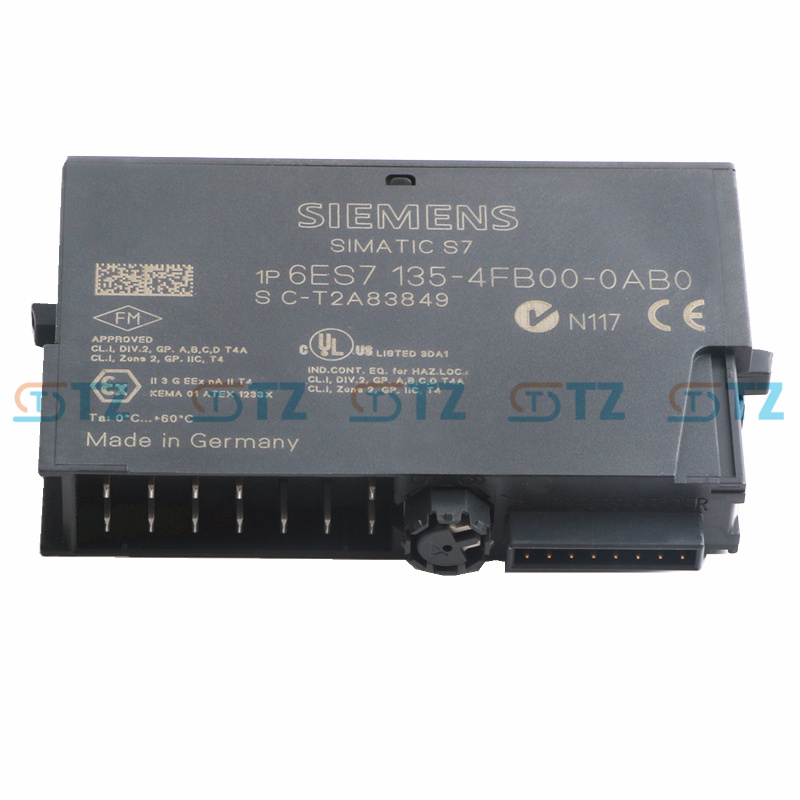

6ES7135-4FB00-0AB0 Siemens SIMATIC ET200S Analog I/O Module

Product parameters

Model: 6ES7135-4FB00-0AB0

Brand: Siemens

Type: Electronic module, used for ET 200S series

Function: 2-channel analog output (2AO)

Output type: ±10V or ±5V

Resolution: 16 bits

Cycle time: 0.1ms

Structural width: 15 mm

Dimensions: Width 15mm, height 81mm, depth 52mm

Weight: Approximately 40 grams

Potential isolation: between channels and between channels and the backplane bus

Allowable potential difference: 75 V DC/60 V AC between MANA and internal ground (UISO)

Insulation test: Use DC 500 V

Compatibility: Applicable to SIMATIC S7-300 series PLCS

Function

Analog output: This module supports 2 channels of analog output and is suitable for analog signal output control of devices such as motors, valves, and sensors.

High precision: It features high measurement accuracy and resolution, and is capable of accurately processing and outputting analog signals.

High-speed response: The cycle time is 0.1ms, ensuring real-time control requirements.

Potential isolation: Provide potential isolation between channels to ensure the stability and security of the system.

Centralized error reporting: Centralized error reporting through LED facilitates fault diagnosis and maintenance.

Application scenarios

Industrial control: It is used to control the start and stop of equipment such as motors, pumps, and fans, as well as to adjust their operating speed or position.

Process control: In industries such as chemical engineering, pharmaceuticals, and food processing, it is used to regulate parameters such as temperature, pressure, and flow rate.

Building automation: It is used for the control of air conditioning, lighting, ventilation and other equipment in building management systems.

Traffic control: It is used for the control of traffic lights, subways, elevators and other equipment.

Mechanical manufacturing: It is used for the control of robots, conveyor belts, mechanical arms and other equipment on production lines.

Energy management: It is used for the control and monitoring of equipment in power plants, substations, etc.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
