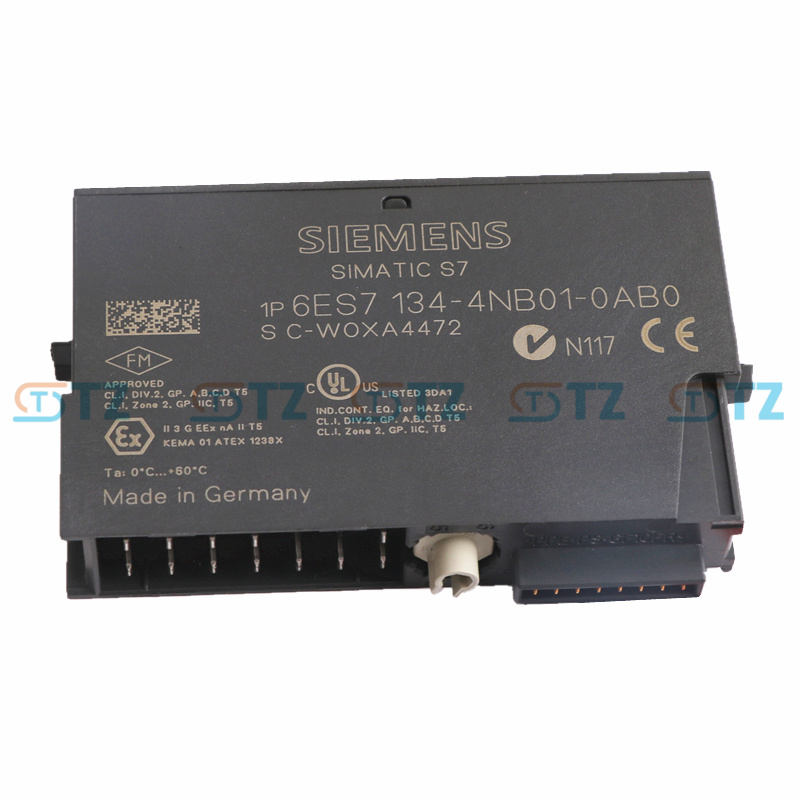

6ES7134-4NB01-0AB0 Siemens SIMATIC ET200S Analog I/O Module

Product parameters

Model: 6ES7134-4NB01-0AB0

Product type: SIMATIC ET 200S, 2 AI TC High Feature analog input Module

Power supply:

Power supply voltage: 24 V DC (provided through the power module, load voltage L+)

5 V DC from the backplane bus: Maximum 110 mA

Power consumption: Typical value 0.6W

Analog input

Input channels: 2 analog inputs (AI)

Input type: Thermocouple (Supported types B, E, J, K, L, N, R, S, T)

Resolution: 15 bits + sign bits

Accuracy: ±0.1% (throughout the entire temperature range)

Temperature compensation: Internal temperature compensation

Measurement range: Depends on the type of thermocouple (refer to the Siemens manual)

Cycle time: 65 ms/ channel (50 Hz/60 Hz filtering)

Cable length:

Shielded cable: up to 50 meters

Diagnostic function:

Group fault indication: SF LED (red, indicating module or channel failure)

Support disconnection detection and overflow/underflow monitoring

Connector: 15-pin front connector

Supported terminal modules:

Spring terminal: TM-E15C24-AT (6ES7193-4CL30-0AA0)

Screw terminal: TM-E15S24-AT (6ES7193-4CL20-0AA0)

Isolation

Between the channel and the backplane bus: Electrical isolation

Electrical isolation between the channel and the load voltage L+

Between passages: No isolation

Ambient temperature

Operation: 0°C to +60°C

Storage: -40°C to +70°C

Protection grade: IP20

Certification: Complies with standards such as CE, UL, and CSA

Function

High-precision thermocouple input: Supports 2 thermocouple inputs, 15-bit resolution + sign bit, suitable for various thermocouple types (B, E, J, K, L, N, R, S, T), providing high-precision temperature measurement.

Internal temperature compensation: Built-in temperature compensation function reduces the need for an external compensation box and improves measurement accuracy.

Fast signal processing: A cycle time of 65 ms per channel, suitable for real-time temperature monitoring.

Diagnostic function: Equipped with SF LED and diagnostic alarm, it supports disconnection detection, overflow/underoverflow monitoring, facilitating rapid fault investigation.

Compact design: 15mm width, modular design, compatible with ET 200S distributed I/O system, saving control cabinet space.

Electrical isolation: The isolation design between the channel and the backplane bus as well as the load voltage enhances the anti-interference capability and system security.

Flexible integration: Seamlessly integrated with the SIMATIC ET 200S system, supports PROFIBUS DP and PROFINET protocols, and is compatible with STEP 7 or PCS7 software configuration.

Application scenarios

Industrial automation: It is used in production lines, packaging machinery, and material handling systems to collect temperature signals, such as monitoring the temperature of motors, bearings, or pipelines.

Process control: Widely applied in industries such as petrochemicals, pharmaceuticals, and food and beverages, it measures key temperature parameters.

Distributed control system: Integrated into the ET 200S distributed I/O system, connected via PROFIBUS DP or PROFINET, suitable for large factories or decentralized facilities.

Energy management: Monitoring systems for industries such as power, oil and gas, etc., collect temperature data to ensure the safe operation of equipment.

Mechanical manufacturing: Integrated into OEM equipment, such as testing equipment or automated assembly lines, for high-precision temperature monitoring.

Environmental monitoring: It is used in HVAC, cold chain systems or environmental control to monitor the temperature of the environment or equipment.
