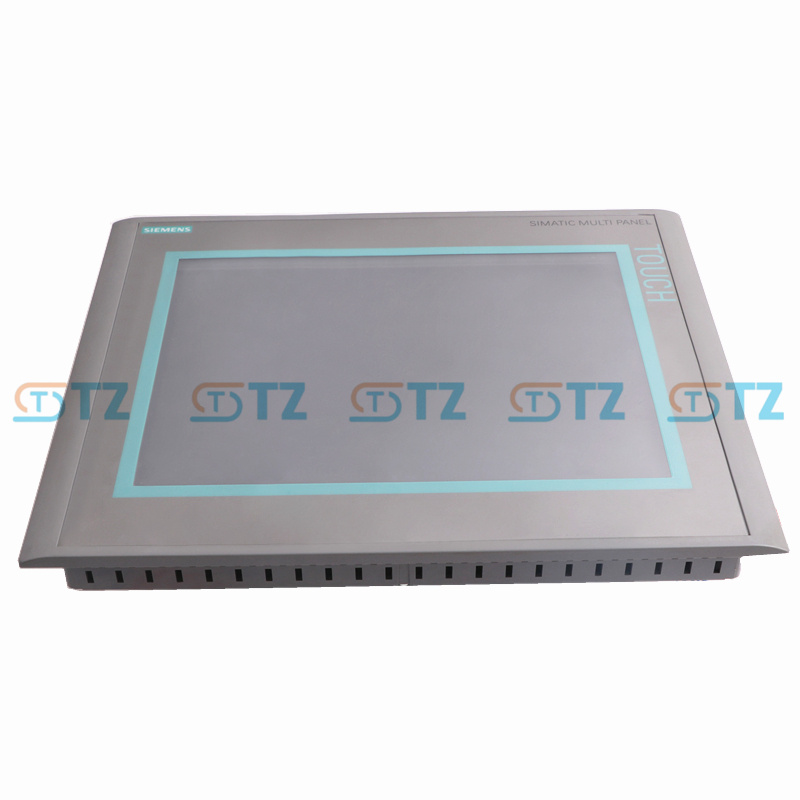

6AV6644-0AA01-2AX0 Siemens SIMATIC MP 377 12" TOUCH MULTIPANEL

Product parameters

Product type: SIMATIC Multi Panel MP 377 12" Touch

Display screen: Type: TFT color display screen

Size: 12.1 inches

Resolution: 800 x 600 pixels (SVGA)

Colour: 65,536 colours

Control mode: Touch screen operation (analog resistance type)

Processor: Embedded processor

Memory: Configured memory: 12 MB Flash (for project data)

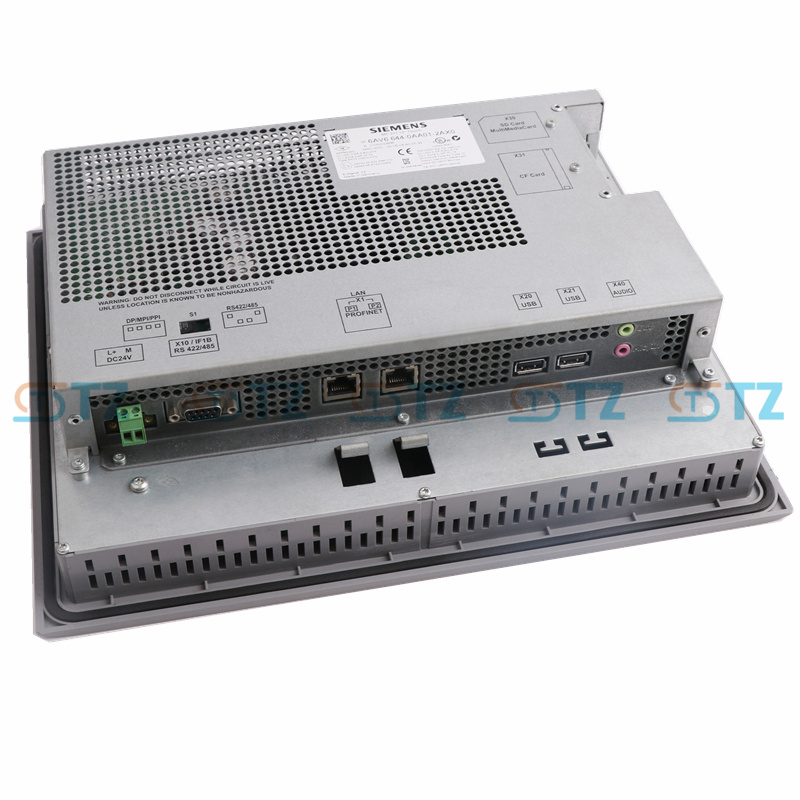

Communication interface :RS-485/RS-422 (Supports MPI/PROFIBUS DP protocol, up to 12 Mbps)

Ethernet (RJ45, 10/100 Mbps, supporting PROFINET)

USB (2 ports, used for data transfer or connecting external devices such as mice and keyboards)

CF card slot (for storage and project backup)

Power supply: Rated voltage: 24 VDC

Power: Approximately 18 W

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: -20°C to 60°C (-4°F to 140°F)

Protection grade: IP65 (front panel), NEMA 4, NEMA 12 (suitable for industrial environments)

Operating system: Windows CE 5.0

Configuration software: WinCC Flexible 2007 Standard or above version

Certifications: CE, UL, cUL, Class I Div 2 Groups ABCD, Class I Zone 2 Ex nA IIC T4

Function

Human-machine Interface (HMI) : It provides an intuitive touchscreen interface, supports complex graphic display and operation, and is used for control, monitoring and data visualization in industrial automation.

Multi-functional panel: Integrating HMI and PLC functions, it supports advanced features such as alarm management, formula management, trend display, data recording, and non-volatile alarm buffer, facilitating process optimization and fault diagnosis.

Communication capability: Supports MPI, PROFIBUS DP and PROFINET protocols, and can be seamlessly integrated with Siemens S7-200/300/400, S7-1200/1500 PLCS and other devices. Dual Ethernet ports and USB interfaces support flexible network connections and peripheral expansion.

Multi-language support: Configurable multi-language interfaces (including Asian and Cyrillic character sets) to meet the requirements of international applications.

Durable and sturdy: With an IP65 protection rating (front panel), it ensures reliability in harsh industrial environments such as dust and humidity, and is suitable for vertical installation (up to 35° tilt, no external ventilation required).

Data Management: Supports project backup, recovery and firmware upgrade through WinCC Flexible or ProSave tools. The CF card slot is used for expanded storage and data archiving.

Scalability: Supports external devices (such as printers, barcode scanners) and expansion modules to enhance system flexibility.

Application scenarios

Medium and large-scale industrial automation: Factory automation: It is used to control and monitor complex production line equipment, such as conveyor belts, packaging machines, assembly lines and robot systems.

Process control: Applicable to the chemical, pharmaceutical, food and beverage, and oil and gas industries, it monitors parameters such as temperature, pressure, and flow rate.

Mechanical manufacturing: Integrated into CNC machines, injection molding machines or automated production equipment, it provides an intuitive operation interface and real-time data feedback.

Data acquisition and monitoring: Used in SCADA systems to collect and display sensor data, supporting production optimization and fault diagnosis.

Legacy system maintenance: As a discontinued SIMATIC MP 377 series device, it is suitable for replacing or maintaining existing HMI systems, especially in old factories.

Networked control: Distributed control is supported through PROFINET and PROFIBUS, making it suitable for scenarios that require remote I/O or networked management, such as energy management and intelligent manufacturing.
